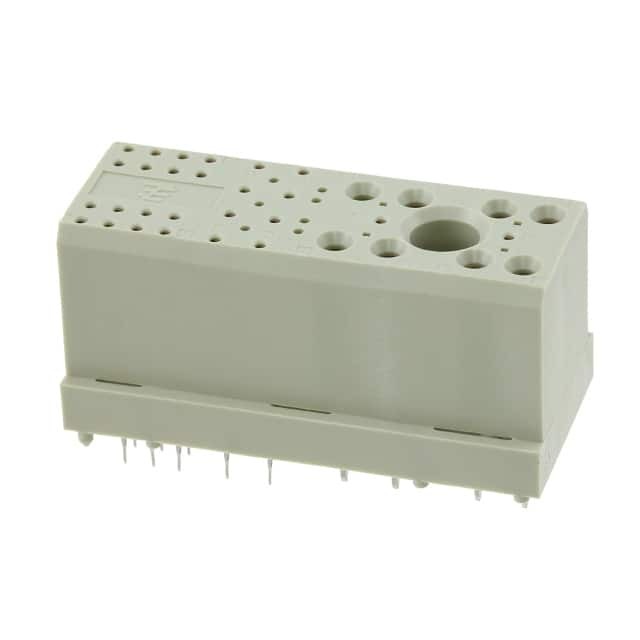

1766501-1
Same model may have multiple batches, images only for reference.

1766501-1

Part No 1766501-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT ATCA 34POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Package Tube
Product Status Obsolete
Connector Usage Backplane
Connector Type Receptacle, Female Sockets
Connector Style AdvancedTCA®
Number of Positions 34
Number of Positions Loaded 30
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 26 Signal, 8 Power
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Gray
Material Flammability Rating UL94 V-0
Base Product Number 1766501
Standard Package 11 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854166-1766501-1
Ultra Librarian 3D Model Ultra Librarian 1766501-1 CAD Model

Description

The 854166-1766501-1 is a specialized backplane connector designed for advancedTCA applications.

  • Positions: 34
  • Color: Gray
  • Connector Type: Receptacle with Female Sockets
  • Termination: Press-Fit
  • Contact Finish: Gold with a thickness of 50.0µin (1.27µm)
  • Mounting: Through-Hole
  • Standard Package: 11 pieces
  • Usage: Backplane
  • Contact Layout: 26 Signal and 8 Power
  • Series: TE Connectivity 1766501
  • Product Status: Obsolete
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
