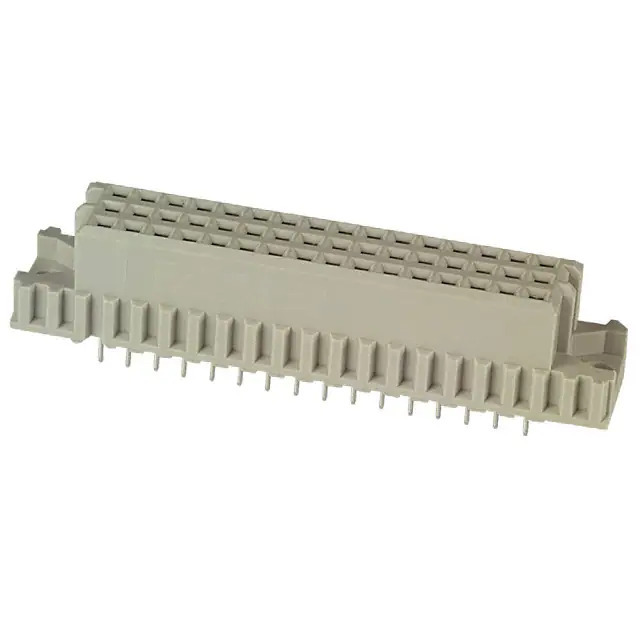

Same model may have multiple batches, images only for reference.

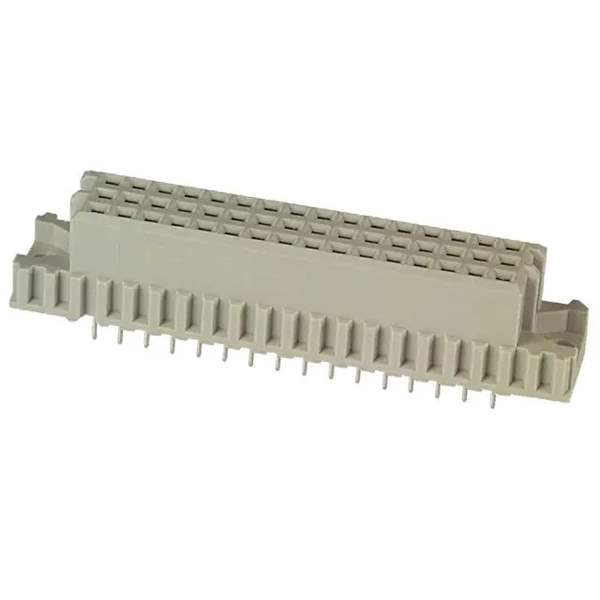

5535070-5 TE Connectivity
Same model may have multiple batches, images only for reference.

5535070-5

Part No 5535070-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB GOLD / 48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Level, Class 2
Mounting Type Through Hole
Termination Solder
Features -
Contact Finish Gold
Contact Finish Thickness -
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Material - Insulation Polymer Thermoplastic, Glass Filled
Base Product Number 5535070
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364485-5535070-5
Ultra Librarian 3D Model Ultra Librarian 5535070-5 CAD Model

Description

The TE Connectivity AMP Connectors 1364485-5535070-5 is a DIN 41612 backplane connector that operates in a wide temperature range of -55°C to 125°C.

  • Operating Temperature: -55°C ~ 125°C
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • Packaging: Bulk
  • Product Status: Active
  • Base Product Number: 5535070
  • HTSUS: 8536.69.4040
  • ECCN: EAR99
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Positions: 48
  • Number of Rows: 3
