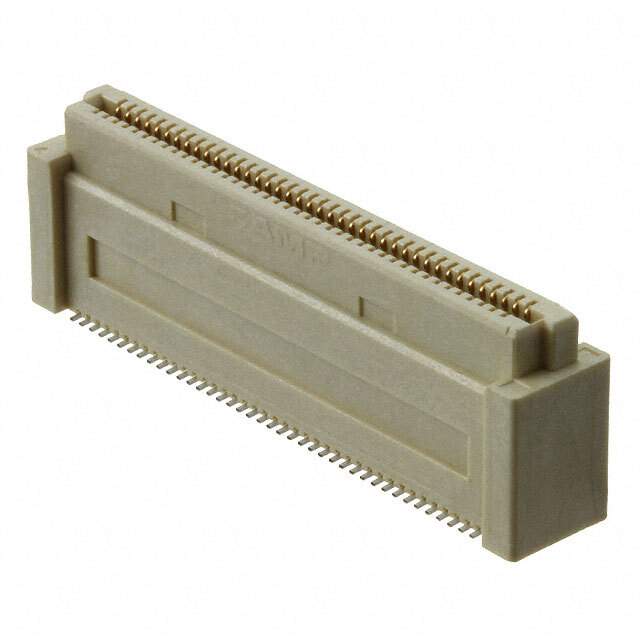

5-5179010-3 Real Image
Same model may have multiple batches, images only for reference.

5-5179010-3

Part No 5-5179010-3
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 80POS SMD GOLD / 80 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity AMP Connectors
Series Free Height (FH)
Package Tube
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 80
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 13mm
Height Above Board 0.463" (11.75mm)
Base Product Number 5179010
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names A115416,2266-5-5179010-3,-5-5179010-3-SI,5-5179010-3-ND
Standard Package 12
Win Source Part Number 1039281-5-5179010-3
Ultra Librarian 3D Model Ultra Librarian 5-5179010-3 CAD Model

Description

The 1039281-5-5179010-3 is a rectangular connector from TE Connectivity AMP Connectors. Bold the product name 1039281-5-5179010-3 and the manufacturer TE Connectivity AMP Connectors.

  • Connector Type: rectangular connector
  • Series: Free Height (FH) series
  • Positions: 80
  • Pitch: 0.031" (0.80mm)
  • Feature: board guide feature
  • Connector Type: receptacle
  • Contact Type: outer shroud contact
  • Contact Finish: gold finish with a thickness of 8.00μin (0.203μm)
  • Package: tube
  • Mated Stacking Heights: 13mm
  • Height Above Board: 0.463" (11.75mm)
  • Mounting: SMD (SMT) method
  • Alternative Parts: SEM-140-02-03.0-H-D, 5-5179009-3, 61082-081402LF, 61082-081400LF, QSE-040-01-L-D-A, ERF8-040-05.0-S-DV-TR, and 5177983-35-5179010-3
