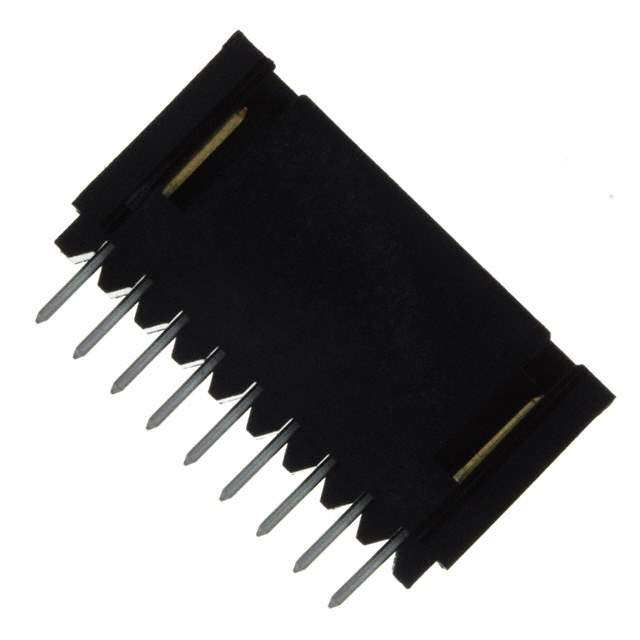

5-102202-6

Name: 5-102202-6
Brand: TE Connectivity
SKU: 1035809
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5-102202-6
Manufacturer	TE Connectivity
Catalog	Rectangular - Board to Board Connectors
Description	CONN HEADER VERT 9POS 2.54MM / Connector Header Through Hole 9 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU Mod II
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.589" (14.96mm)
Insulation Height	0.549" (13.94mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Thermoplastic
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	102202
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	A32990,2266-5-102202-6
Standard Package	1,440
Win Source Part Number	1035809-5-102202-6
Ultra Librarian 3D Model	Ultra Librarian 5-102202-6 CAD Model

Description

The 1035809-5-102202-6 is a male pin header connector from the AMPMODU Mod II series.

Positions: 9
Rows: 1
Pitch: 0.100" (2.54mm)
Shrouding: 4 walls
Mounting Type: Through-hole
Contact Finish (Mating): Gold with a thickness of 15.0µin (0.38µm)
Contact Finish (Post): Tin with a thickness of 100.0µin (2.54µm)
Insulation Material: Thermoplastic
Material Flammability Rating: UL94 V-0
Temperature Range: -65°C to 105°C
Current Rating: 3A
