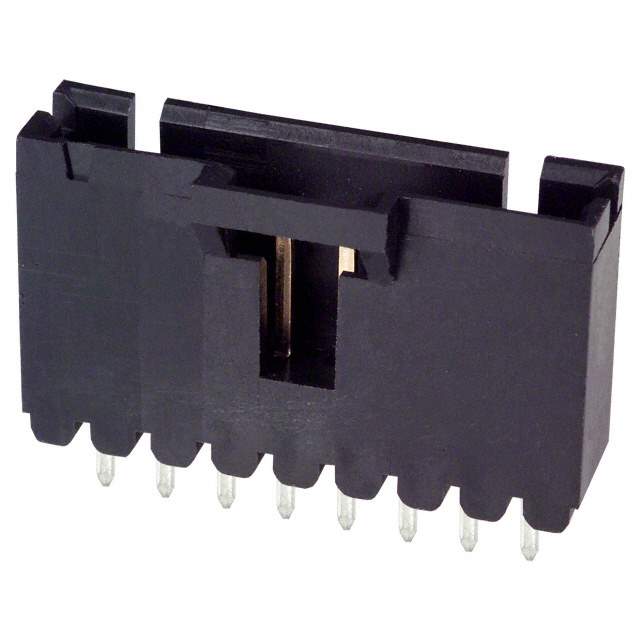

5-103735-7 Real Image
Same model may have multiple batches, images only for reference.

5-103735-7

Part No 5-103735-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description Conn Shrouded Header (4 Sides) HDR 8 POS 2.54mm Solder ST Thru-Hole Tube / CONN HEADER VERT .100 8POS 30AU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 051397-5-103735-7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 103735
Introduction Date August 04, 2010
ECCN EAR99
Country of Origin Mexico, Poland, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 5-103735-7 CAD Model

Description

Product Overview

The 5-103735-7 electronic connector is an essential component designed for enhancing connectivity in modern electronic applications. Its reliable performance ensures uninterrupted power and data transfer.

Features and Benefits

  • High Performance: Provides consistent and reliable connection solutions.
  • Wide Compatibility: Compatible with a broad range of devices and systems.
  • Robust Construction: Constructed with durable materials for extended lifespan.
  • Ease of Use: Simplified installation process reduces time and effort.

Applications

  • Computer peripherals
  • Robotic systems
  • Home appliances
  • Medical equipment

Additional Details

The 5-103735-7 connector is designed to meet the needs of high-demand environments, providing a stable and efficient means of connecting essential electronic components.
