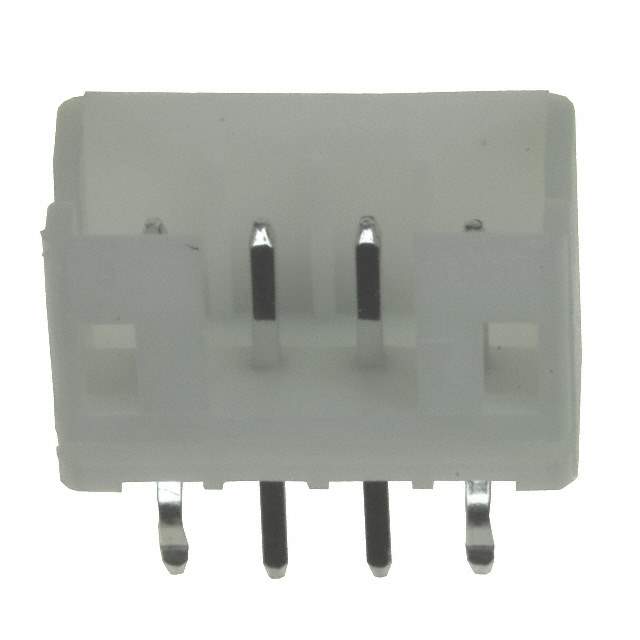

440054-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Press-Fit, Solder
Contact Length - Mating 0.132" (3.35mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.335" (8.51mm)
Insulation Height 0.238" (6.05mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0μin (2.03μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Contact Finish Thickness - Post 80.0μin (2.03μm)
Applications Automotive, General Purpose, Industrial, Medical
Manufacturer Pack Quantity 650
MSL Level 1 (Unlimited)
Win Source Part Number 1128711-440054-4
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 440054-4 CAD Model

Description

The 1128711-440054-4 by TE Connectivity AMP Connectors is a male pin header that is designed to provide excellent performance and reliability.

  • Popularity: Medium
  • Supply and Demand Status: Well-Balanced
  • Insulation Color: Natural
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Contact Finish Thickness: 80.0μin (2.03μm)
  • Contact Length: 0.132" (3.35mm)
  • Connector Type: Shrouded-4 Wall
  • Applications: Automotive, Industrial, and Medical
