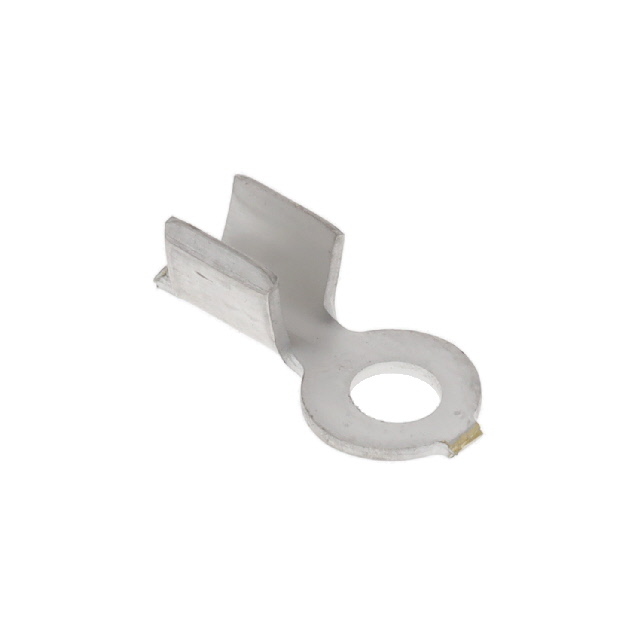

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Terminal Type Circular
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.470" (11.94mm)
Length - Overall 1.072" (27.23mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Contact Material Brass
Contact Finish Tin
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1635818-41126
Ultra Librarian 3D Model Ultra Librarian 41126 CAD Model
