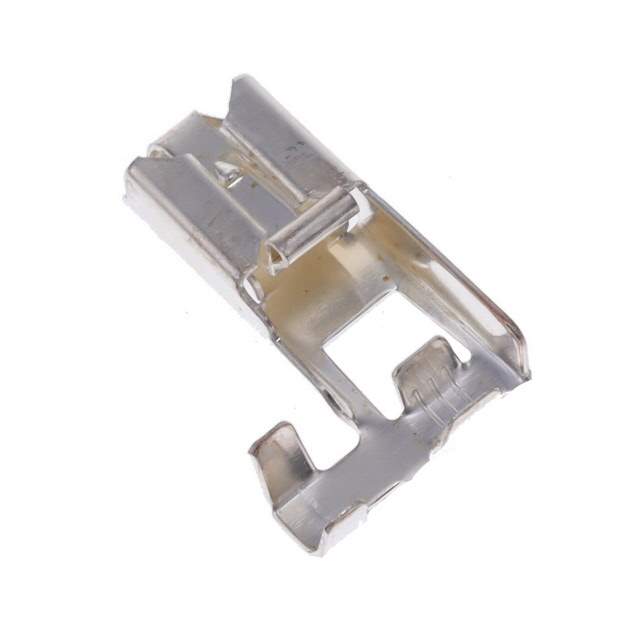

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Mark I
Package Reel
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Crimp
Wire Gauge 15.5-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Phosphor Bronze
Contact Finish Silver
Insulation Diameter 0.087" ~ 0.130" (2.21mm ~ 3.30mm)
Base Product Number 926820
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-926820-8TR,926820-8-ND,A129178
Standard Package 2,000
Win Source Part Number 1058486-926820-8
Ultra Librarian 3D Model Ultra Librarian 926820-8 CAD Model

Description

The TE Connectivity AMP Connectors 1058486-926820-8 is a female connector that has a wire gauge of 15.5-20 AWG. It has a terminal type of angled - 90°, flag and a tab width of 0.250" (6.35mm).

  • Gender: Female
  • Wire Gauge: 15.5-20 AWG
  • Terminal Type: Angled - 90°, Flag
  • Tab Width: 0.250" (6.35mm)
  • Material: Phosphor Bronze
  • Contact Finish: Silver
  • Insulated: Non-Insulated
  • Insulation Diameter: 0.087" ~ 0.130" (2.21mm ~ 3.30mm)
  • Package: 2,000
  • Supplied In: Reel
  • Popular: Yes
  • Alternative Parts: 08-52-0112, 2-330854-6, 35464-8000, 160860-4, 160773-4, and 35028-1111
