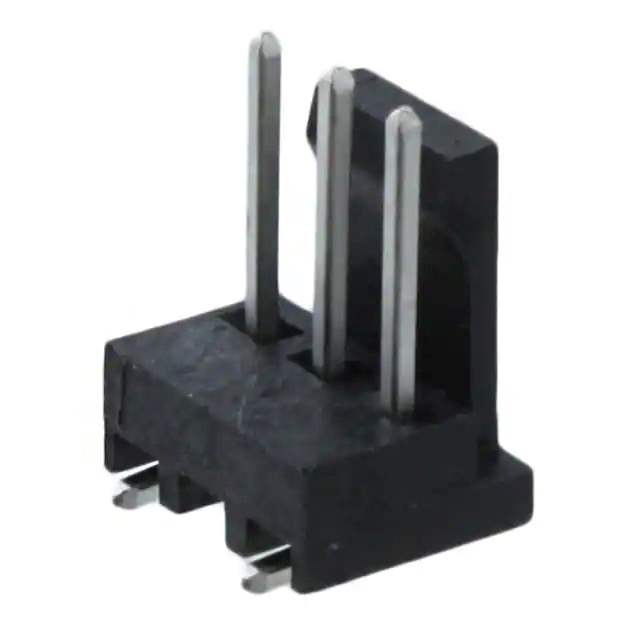

Part No 3-647166-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 3POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series MTA-100
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.290" (7.37mm)
Insulation Height 0.347" (8.81mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA46), Nylon 4/6
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 647166
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855802-3-647166-3
Ultra Librarian 3D Model Ultra Librarian 3-647166-3 CAD Model

Description

The TE Connectivity electronic component with the Win Source Part Number 855802-3-647166-3 is a rectangular connector header with male pins.

  • Positions: 3
  • Application: General Purpose
  • Connector Type: Header
  • Contact Type: Male Pin
  • All Positions Loaded: Yes
  • Row Count: 1
  • Termination Method: Solder
  • Fastening Type: Friction Lock
  • Package: Bulk
  • Pieces Per Package: 500
  • Contact Material: Copper Alloy
  • Voltage Rating: 250VAC
  • Insulation Material: Polyamide (PA46) and Nylon 4/6
  • Flammability Rating: UL94 V-0
  • Pitch - Mating: 0.100" (2.54mm)
  • Contact Finish - Mating: Tin
  • Operating Temperature: -55°C to 105°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Product Status: Active
