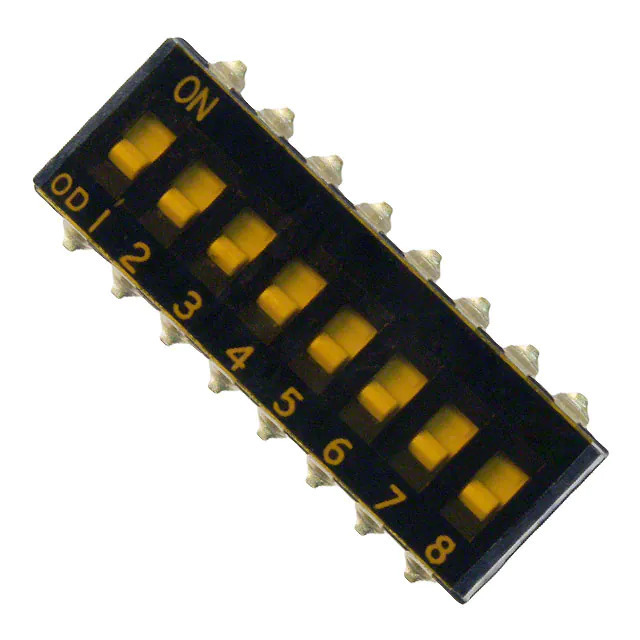

4-1825059-2 TE Connectivity
Same model may have multiple batches, images only for reference.

4-1825059-2

Part No 4-1825059-2
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ADF
Package Tape & Reel (TR)
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.177" (4.50mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.878" (22.30mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 4-1825059
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376352-4-1825059-2
Ultra Librarian 3D Model Ultra Librarian 4-1825059-2 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches ADF is a DIP switch with 8 positions and a SPST circuit.

  • Positions: 8
  • Circuit: SPST
  • Mounting: Surface Mount
  • Termination Style: Gull Wing
  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Pitch: 0.100" (2.54mm)
  • Mechanical Life: 1,000 cycles
  • Actuator Type: Slide
  • Actuator Level: Flush, Recessed
  • Material: Polyphenylene Sulfide (PPS)
  • Height Above Board: 0.177" (4.50mm)
  • Features: Washable
