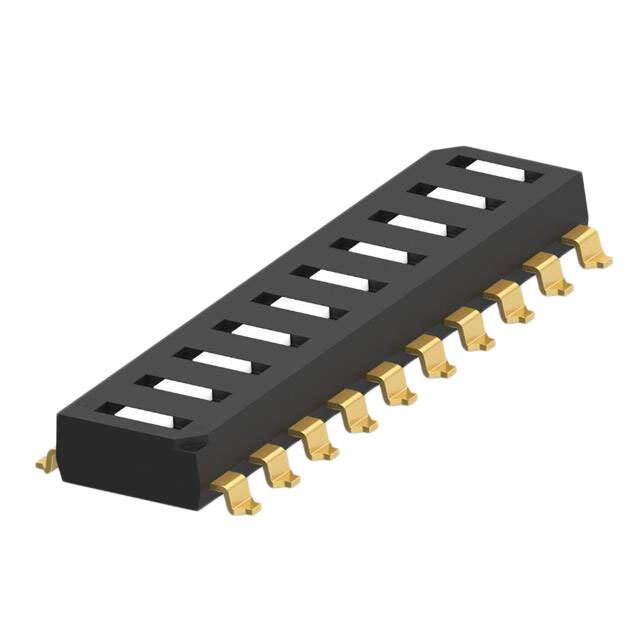

1-1825006-9 Real Image
Same model may have multiple batches, images only for reference.

1-1825006-9

Part No 1-1825006-9
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 21 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer TE Connectivity
Series GDS
Package Tube
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount
Family Name 1825006
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number GDS10S04, 2266-1-1825006-9
Quantity per package 510
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919595-1-1825006-9
Ultra Librarian 3D Model Ultra Librarian 1-1825006-9 CAD Model

Description

The TE Connectivity 919595-1-1825006-9 is a GDS series dip switch with SPST position surface mount slide (standard) actuator.

  • Maximum Current Rating: 25mA
  • Operating Voltage: 24VDC
  • Mounting: Surface mount
  • Package: Tube
  • Operating Temperature Range: -30°C to 85°C
  • Market Popularity: Popular
  • Supply and Demand Status: Balanced
