Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.156" (3.96mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyphenylene Sulfide (PPS)
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A
Voltage Rating 50V
Base Product Number 175643
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 4-175643-2-ND,A115200,-4-175643-2-SI
Standard Package 50
Win Source Part Number 1332101-4-175643-2
Ultra Librarian 3D Model Ultra Librarian 4-175643-2 CAD Model

Description

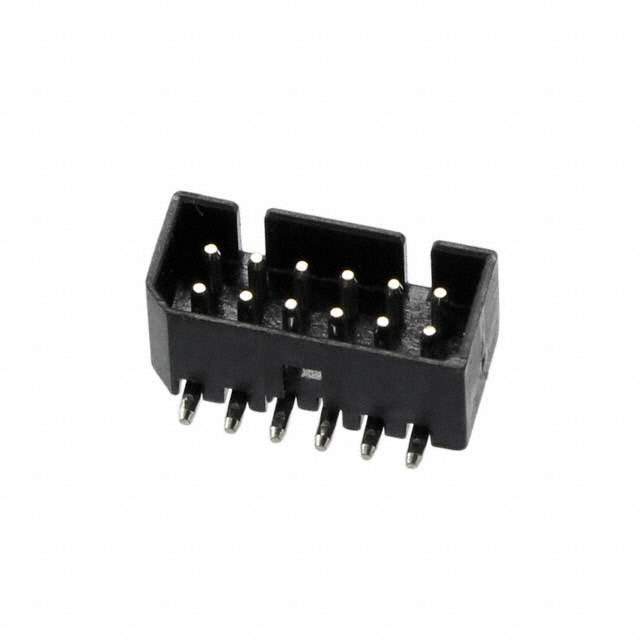

The TE Connectivity AMP Connectors 175643-2 is a header connector with a 12-position male pin.

  • Pitch: 0.049” (1.25mm)
  • Application: Board-to-Board
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Insulation Material: Polyphenylene Sulfide (PPS)
  • Material Flammability Rating: UL94 V-0
  • Design: Shrouded 4-Wall
  • Package: Tube
  • Package Quantity: 50
  • Operating Temperature Range: -30°C to 105°C
