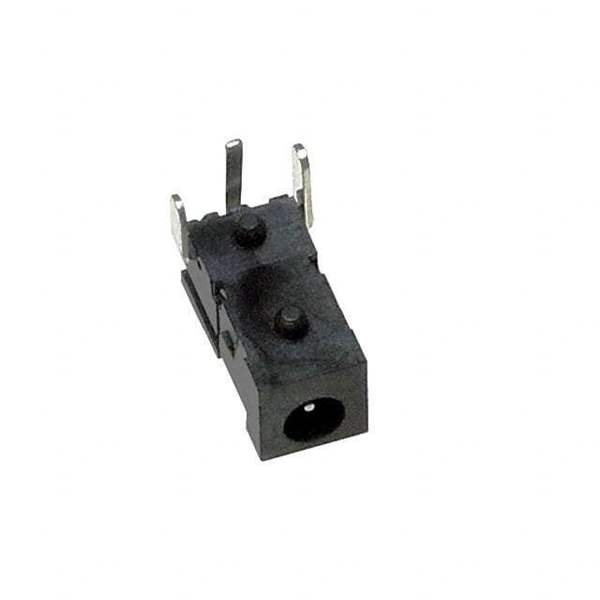

Part No PJ-022
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 0.7X2.35MM SOLDER / Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle
Datasheet
PJ-022 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr CUI Inc.
Package Bulk
Product Status Obsolete
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter 0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Type Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Voltage - Rated 16VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.315" (8.00mm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -25°C ~ 85°C
Contact Material - Plating Silver
Housing Material Polyamide (PA), Nylon
Contact Material Brass
Body Color Black
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 867064-PJ-022
Ultra Librarian 3D Model Ultra Librarian PJ-022 CAD Model

Description

The PJ-022 is a male power connector from CUI Inc.

  • Connector Type: Jack
  • Conductors: 2
  • Contacts: 3
  • Mounting Type: Through-Hole, Right Angle
  • Voltage Rating: 16VDC
  • Current Rating: 1A
  • Contact Material: Brass with Silver Plating
  • Shielding: Unshielded
  • Housing Material: Polyamide and Nylon
  • Flammability Rating: UL94 V-0
  • Mating Diameter: 0.70mm ID and 2.35mm OD
  • Mating Length: 0.315"
  • Operating Temperature: -25°C to 85°C
