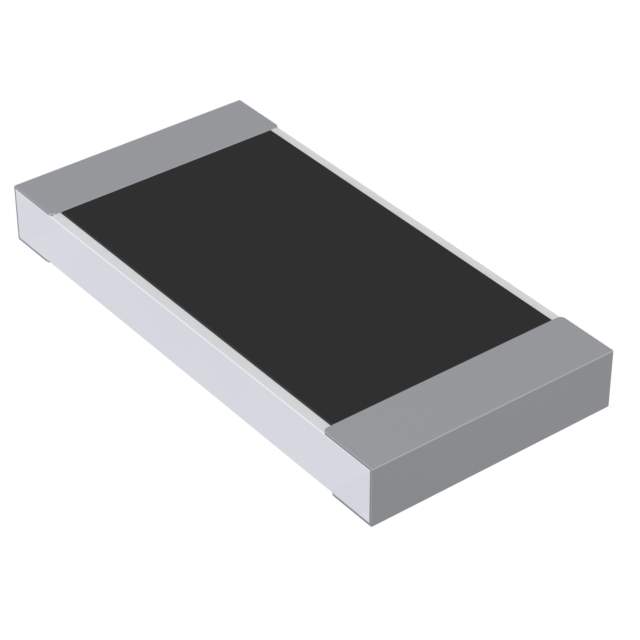

35022R4FT Real Image
Same model may have multiple batches, images only for reference.

35022R4FT

Part No 35022R4FT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 3502 2R4 1% / 2.4 Ohms ±1% 2W Chip Resistor 2010 (5025 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series 3502, CGS
Package Tape & Reel
Resistance 2.4 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Size / Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Number of Terminations 2
Base Product Number 3502
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1350997-35022R4FT
Ultra Librarian 3D Model Ultra Librarian 35022R4FT CAD Model

Description

The 3502, CGS series chip resistor is a surface mount component from TE Connectivity Passive Product.

  • Size Dimension: 0.197" L x 0.098" W (5.00mm x 2.50mm)
  • Height: 0.047" (1.20mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Resistance: 2.4 Ohms
  • Power Rating: 2W
  • Package/Case: 2010 (5025 Metric)
  • Packaging: Tape & Reel
  • ECCN: EAR99 compliant
