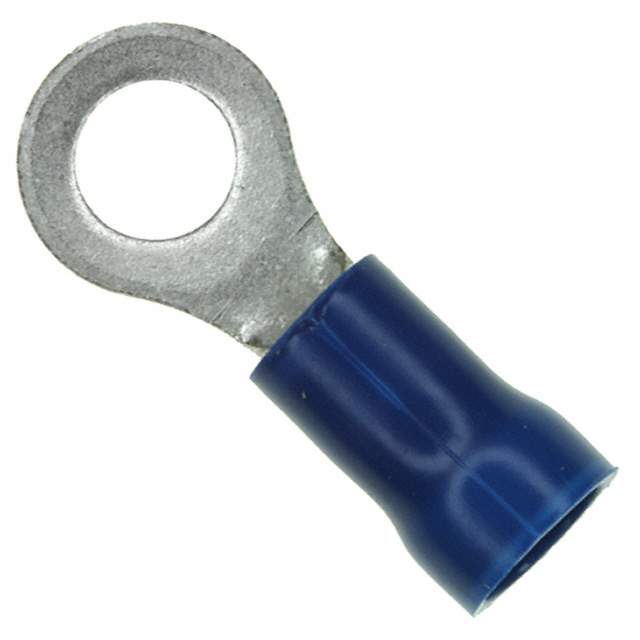

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.343" (8.71mm)
Length - Overall 0.871" (22.12mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.118" ~ 0.193" (3.00mm ~ 4.90mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 3416
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -34161-SI,A0965
Standard Package 1,000
Win Source Part Number 1333806-34161
Ultra Librarian 3D Model Ultra Librarian 34161 CAD Model

Description

TE Connectivity AMP Connectors brings to you the 1333806-34161 electronic component.

  • Product Type: Ring Connector
  • Termination Feature: Serrated
  • Termination Type: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 14-16 AWG
  • Contact Material: Copper
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Insulation: Insulated
  • Thickness: 0.031" (0.79mm)
  • Width of Outer Edges: 0.343" (8.71mm)
  • Length Overall: 0.871" (22.12mm)
  • Stud/Tab Size: 10 Stud
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.90.4000
  • Other Part Numbers: -34161-SI and A0965
  • Base Product Number: 3416
  • ROHS3 Compliant: Yes
