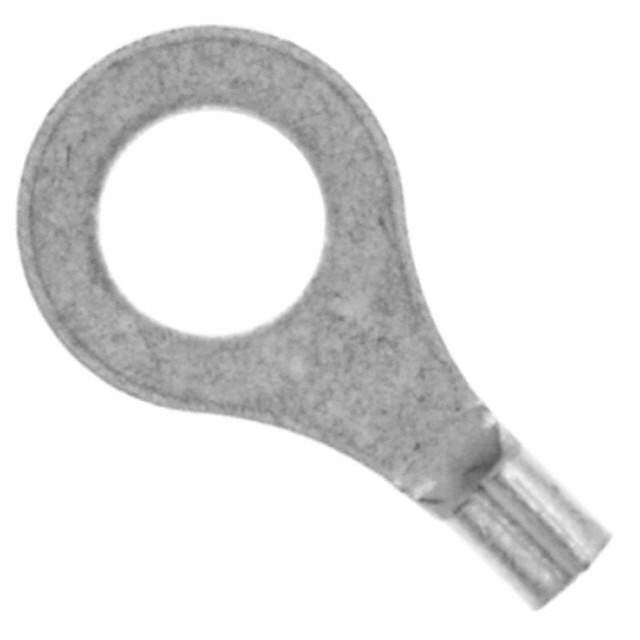

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.469" (11.91mm)
Length - Overall 0.856" (21.74mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 3411
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -34113-SI,2266-34113,A0918
Standard Package 1,000
Win Source Part Number 1333682-34113
Ultra Librarian 3D Model Ultra Librarian 34113 CAD Model

Description

The 1333682-34113 is a ring connector manufactured by TE Connectivity AMP Connectors.

  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 16-22 AWG
  • Stud/Tab Size: 1/4 Stud
  • Insulation: Non-Insulated
  • Thickness: 0.031 inches
  • ROHS3 Compliant: Yes
