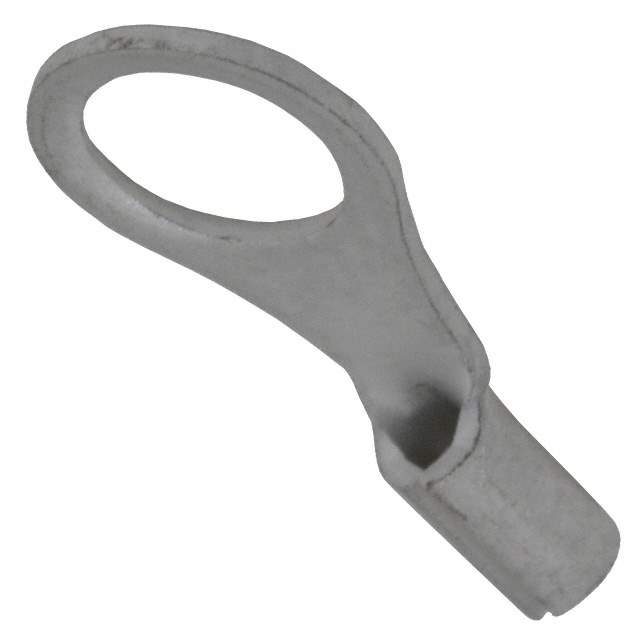

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Series Budget
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.018" (0.46mm)
Width - Outer Edges 0.203" (5.16mm)
Length - Overall 0.450" (11.43mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Non-Insulated
Features Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 3143
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1333470-31430
Ultra Librarian 3D Model Ultra Librarian 31430 CAD Model

Description

The Budget Ring Connectors are a cost-effective solution for your electrical connection needs.

  • Termination Feature: serrated
  • Contact Finish: tin
  • Termination: crimp
  • Wire Gauges: 22-26 AWG
  • Package Quantity: 1,000 pieces
  • Manufacturer: TE Connectivity
  • Series: Budget
  • MSL: 1 (unlimited shelf life)
