Same model may have multiple batches, images only for reference.

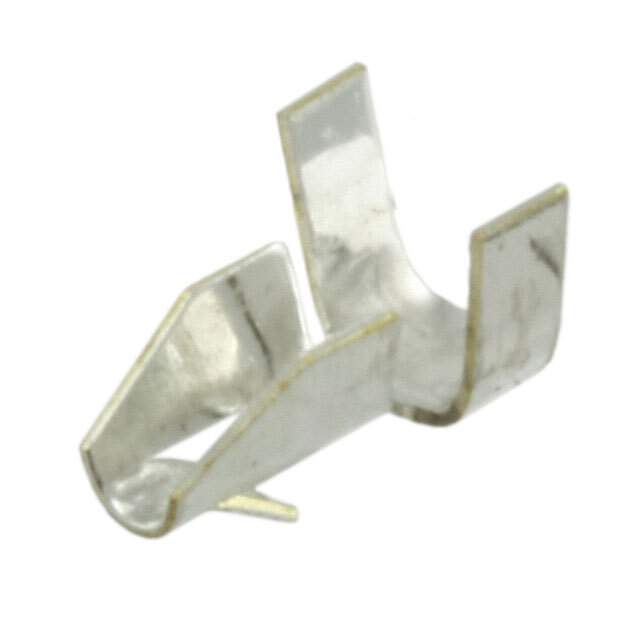

3-770565-1 Real Image
Same model may have multiple batches, images only for reference.

3-770565-1

Part No 3-770565-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN TERM WTB 18-22AWG TIN / WTB Tin Terminal Connector 18-22 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Wire to Board Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Through Board, Locking
Hole Diameter 0.072" ~ 0.077" (1.83mm ~ 1.96mm)
Insulation Diameter 0.060" ~ 0.110" (1.52mm ~ 2.79mm)
Length - Overall 0.220" (5.59mm)
Wire Gauge 18-22 AWG
Contact Material Phosphor Bronze
Contact Finish Tin
Base Product Number 770565
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 37705651,3-770565-1-ND,2266-3-770565-1TR,-3-770565-1-SI,A100174TR,A100174CT,-3-770565-1-CSI
Standard Package 7,000
Win Source Part Number 1333688-3-770565-1
Ultra Librarian 3D Model Ultra Librarian 3-770565-1 CAD Model

Description

The TE Connectivity AMP Connectors wire to board connector is a high-quality connector that is ideal for a variety of electronic applications.

  • Terminal Type: Through-Board, Locking
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Length: 0.220" (5.59mm) Overall
  • Insulation Diameter: 0.060" to 0.110" (1.52mm to 2.79mm)
  • Packaging: Reel - TR
  • Standard Package: 7,000
  • Status: Active
