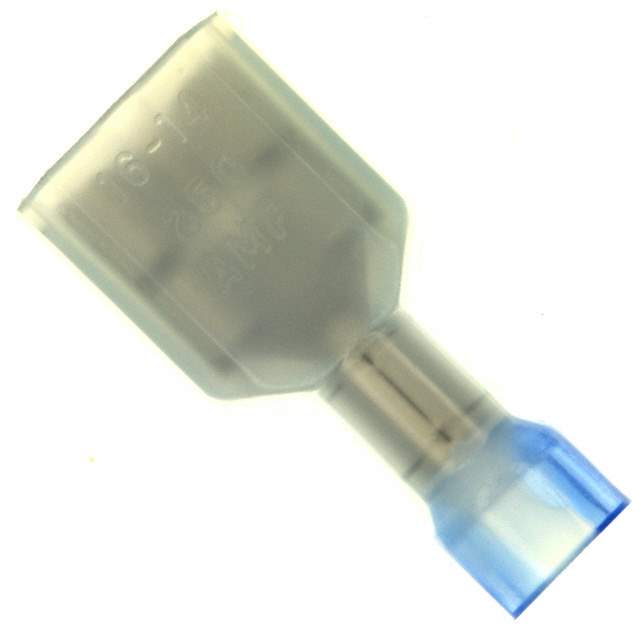

Same model may have multiple batches, images only for reference.

3-520408-2

Name: 3-520408-2
Brand: TE Connectivity
SKU: 1333847
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3-520408-2
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 14-16AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Terminal Type	Standard
Gender	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Length - Overall	0.855" (21.72mm)
Termination	Crimp
Wire Gauge	14-16 AWG
Insulation	Fully Insulated
Mounting	Free Hanging (In-Line)
Color	Blue
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.090" ~ 0.160" (2.29mm ~ 4.06mm)
Base Product Number	520408
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Other Part Number	-3-520408-2-SI,35204082,2266-3-520408-2,-HUB-FULLINSUL-16-14FM-SI,A27856,3-520408-2-ND,-HUB-FULLINSUL-16-14FM-SI-ND,Q8282274A
Standard Package	1,000
Win Source Part Number	1333847-3-520408-2
Ultra Librarian 3D Model	Ultra Librarian 3-520408-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 3-520408-2 is a female quick connect terminal connector that is designed to provide a reliable connection between wires.

Wire Gauge: 14-16 AWG
Color: Blue
Temperature Range: -55°C to 125°C
RoHS3 Compliant: Yes
Standard Package: 1,000
Rated: EAR99
MSL Level: 1 (Unlimited)
HTSUS Rated: 8536.90.4000
Base Product Number: 520408
Insulation: Fully Insulated
Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
