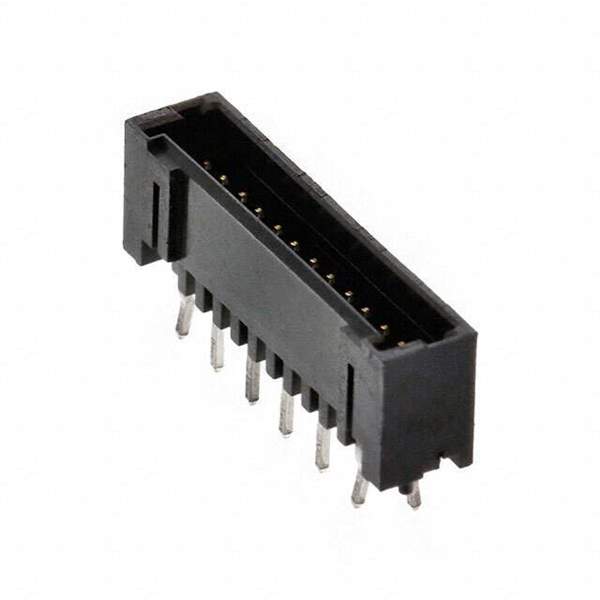

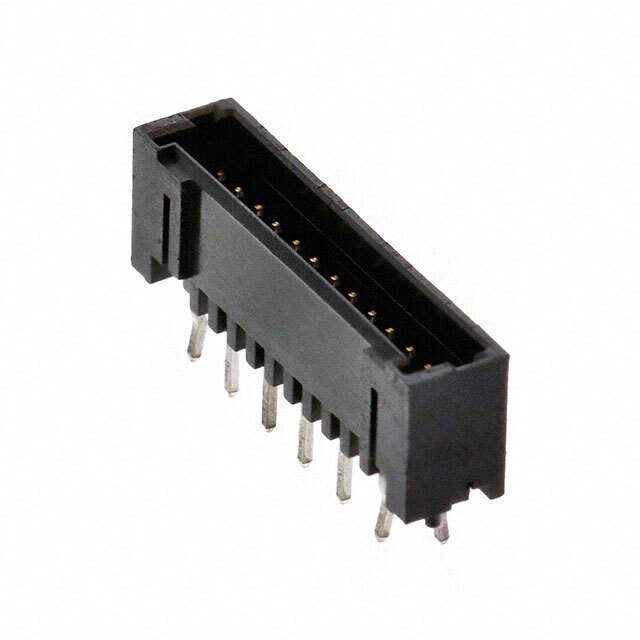

3-292207-3TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

3-292207-3

Part No 3-292207-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 13POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208614-3-292207-3
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 3-292207-3 CAD Model

Description

Connector Header Through Hole 13 position 0.059" (1.50mm)
