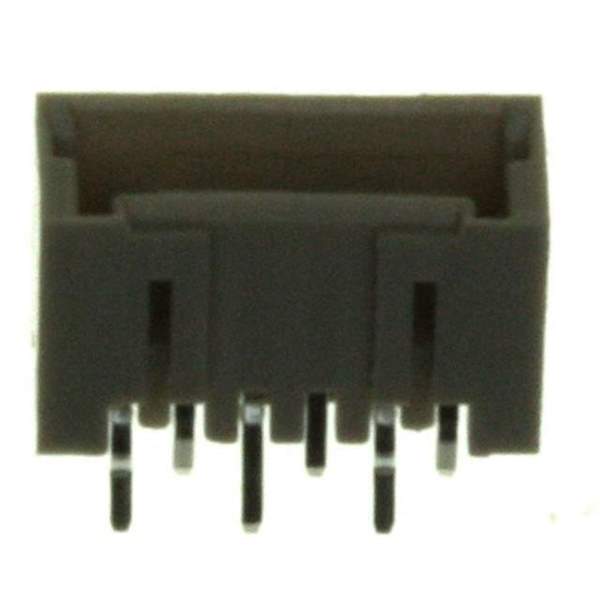

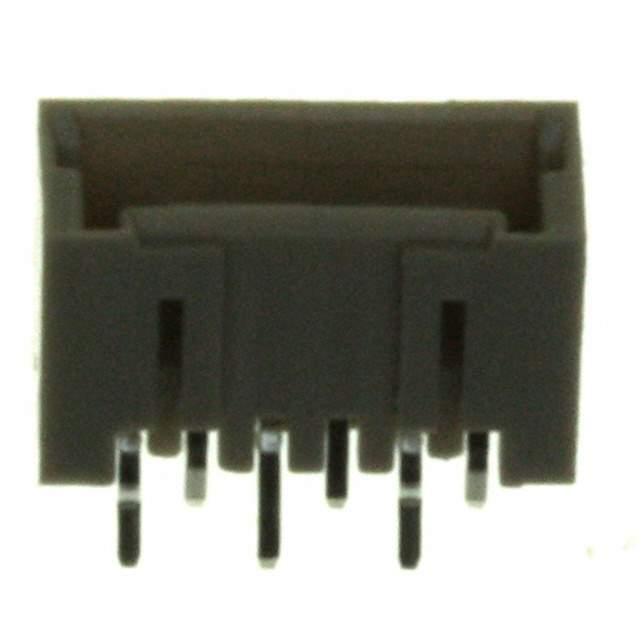

292207-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini CT
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.307" (7.80mm)
Insulation Height 0.272" (6.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Base Product Number 292207
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-292207-6,-292207-6-CSI,2922076,A98685,-292207-6-SI
Standard Package 1,300
Win Source Part Number 1197260-292207-6
Ultra Librarian 3D Model Ultra Librarian 292207-6 CAD Model

Description

The 1197260-292207-6 is a Mini CT series male pin header connector designed for board-to-cable/wire applications.

  • Positions Loaded: 6
  • Termination: Kinked pin, solder
  • Fastening Type: Detent lock
  • Contact Material: Brass
  • Voltage Rating: 50VAC
  • Design: Shrouded 4-wall
  • Insulation Material: Polyamide (PA), nylon, glass-filled
  • Flammability Rating: UL94 V-0
  • Temperature Range: -30°C to 105°C
  • Application: General purpose
  • Package: Bulk
  • Quantity: 1,300 units
  • Contact Finish: Tin-plated
  • Finish Thickness (Mating): 39.4μin (1.00μm)
  • Finish Thickness (Post): 39.4μin (1.00μm)
  • Mating Pitch: 0.059" (1.50mm)
  • Contact Length (Mating): 0.094" (2.40mm)
  • Contact Length (Post): 0.118" (3.00mm)
