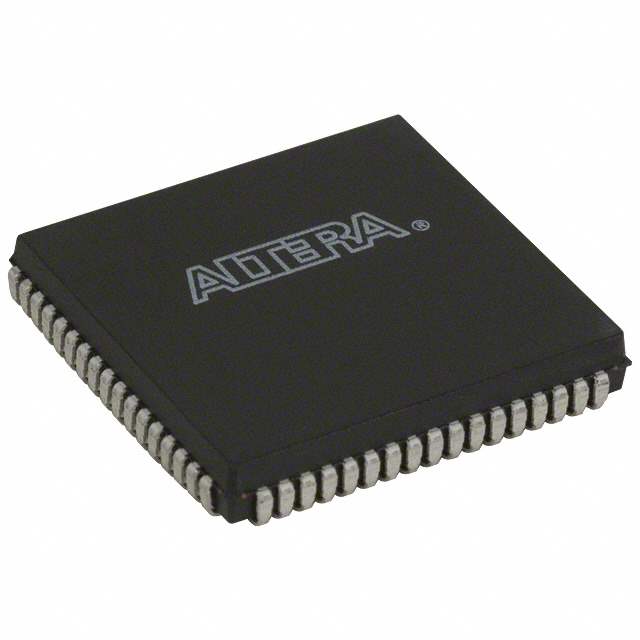

EPM7064LC68-15 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Packaging Tube/Rail
Status Obsolete(EOL)
Programmable Type EE PLD
Delay Time tpd(1) Max 15.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Logic Elements/Blocks 4
Number of Macrocells 64
Number of Gates 1250
Number of I/O 52
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 68-PLCC (24x24)
Win Source Part Number 085179-EPM7064LC68-15
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name EPM7064
Introduction Date October 02, 1998
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date Obsolete
Quantity per package 54
Ultra Librarian 3D Model Ultra Librarian EPM7064LC68-15 CAD Model

Description

Enabling innovative designs, the EPM7064LC68-15 stands out in the MAX 7000 series with its 15ns execution speed and robust 68-pin, 64-macrocell configuration. This device offers a dependable solution for demanding logic applications.

Features and Benefits:

  • 15ns Speed Range: Suitable for moderate-speed tasks, offering a balance of speed and reliability.
  • Flexible Logic Deployment: Benefits from its comprehensive macrocell availability.
  • Cost-Efficient: Provides a cost-effective solution for numerous applications.

Applications:

  • Control Systems
  • Automation Solutions
  • Custom Logic Development

Its balance of speed and cost efficiency makes it an ideal choice for systems where specific performance metrics are necessary without excessive expenditure.
