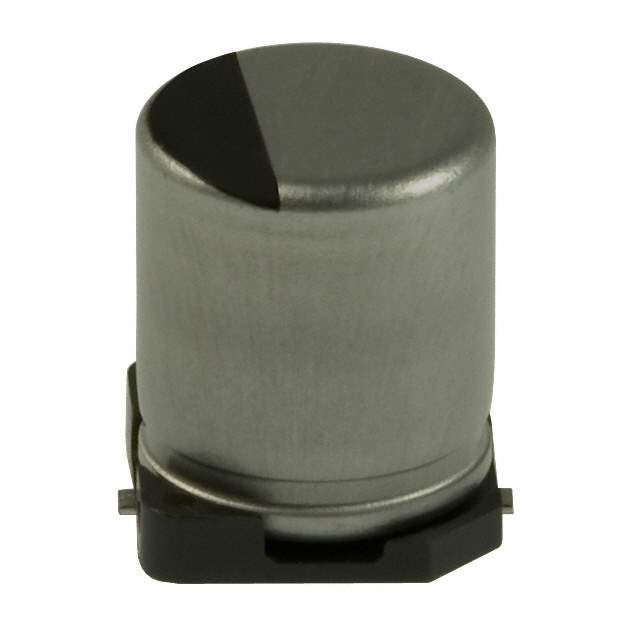

EEE-HA1A221XP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 204 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number EEEHA1A221XP,PCE4173CT,Q6498582H,PCE4173TR,PCE4173DKR
Standard Package 900
Win Source Part Number 1329644-EEE-HA1A221XP
Ultra Librarian 3D Model Ultra Librarian EEE-HA1A221XP CAD Model

Description

The Panasonic Electronic Components Aluminum Electrolytic Capacitor is a high-quality capacitor that is designed to provide excellent capacitance for automotive applications. It has a Win Source Part Number of 1329644-EEE-HA1A221XP and belongs to the Capacitors>Aluminum Electrolytic Capacitors category. The capacitor has a reel - TR packaging and a surface mount mounting. It has a capacitance of 220μF and a voltage rating of 10V. The capacitor has a polarized design and a radial, can - SMD case/package. This capacitor is ideal for automotive applications that require high-quality capacitance.
