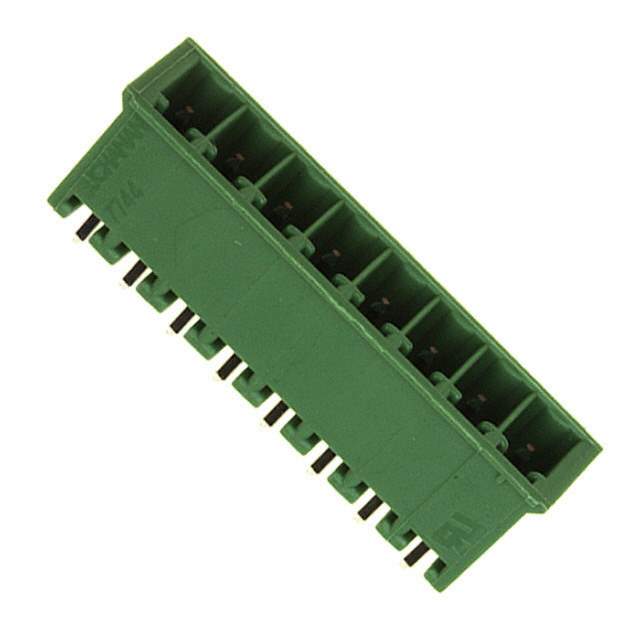

284514-8 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Positions Per Level 8
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - UL 11 A
Voltage - UL 300 V
Color Green
Temperature Range - Operating -40°C ~ 110°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Phosphor Bronze
Housing Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.362" (9.20mm)
Base Product Number 284514
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A98190,2845148,-284514-8-SI
Standard Package 100
Win Source Part Number 982108-284514-8
Ultra Librarian 3D Model Ultra Librarian 284514-8 CAD Model

Description

The Buchanan series by TE Connectivity AMP Connectors offers a shrouded male pin header with 8 positions per level and a pitch of 0.138" (3.50mm).

  • Positions per Level: 8
  • Pitch: 0.138" (3.50mm)
  • Temperature Range: -40°C to 110°C
  • Mounting: through hole
  • Housing Material: polyamide (PA66), Nylon 6/6
  • Material Flammability Rating: UL94 V-0
  • Contact Material: phosphor bronze
  • Contact Mating Finish: tin
  • MSL Level: 1 (Unlimited)
  • REACH Status: vendor undefined
  • HTSUS: 8536.69.4040
  • Other Names: A98190, 2845148, -284514-8-SI
  • Base Product Number: 284514
  • Package: bulk package of 100
