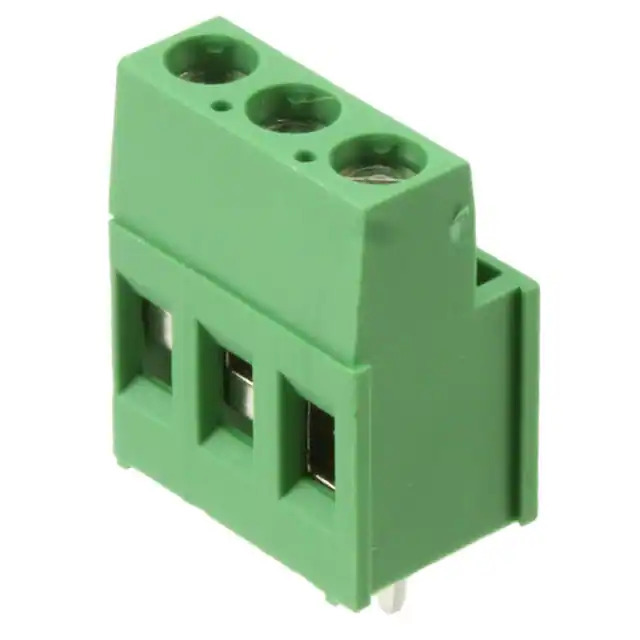

282857-3 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 3
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 24 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.79 Nm (7.0 Lb-In)
Screw Thread M3
Base Product Number 282857
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366076-282857-3
Ultra Librarian 3D Model Ultra Librarian 282857-3 CAD Model

Description

The 1366076-282857-3 is a Wire to Board Terminal Block from TE Connectivity AMP Connectors.

  • Series: Buchanan
  • Mounting Type: Through Hole
  • Wire Gauge: 12-30 AWG
  • Pitch: 0.200" (5.08mm)
  • Positions per Level: 3
  • Number of Levels: 1
  • Current Rating: 24A
  • Voltage Rating: 300V
  • Wire Termination: Rising Cage Clamp Screw
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Contact Material: Brass
  • Contact Finish: Tin-Plated
  • Housing Color: Green
  • Features: Interlocking (Side)
