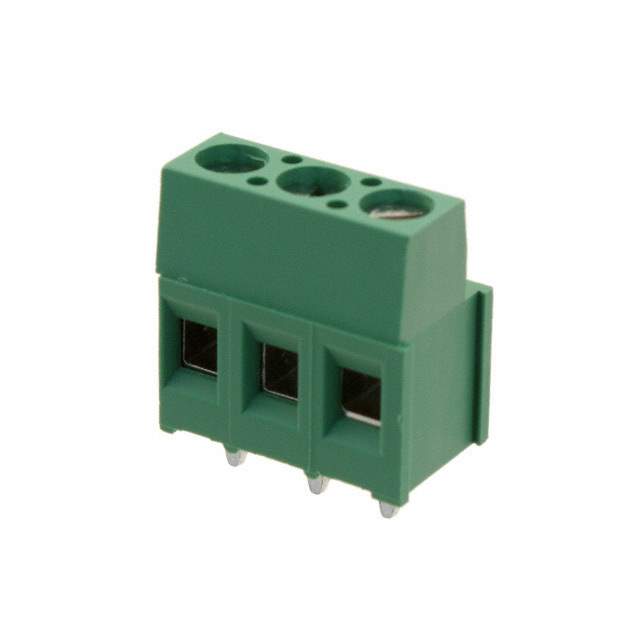

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 17.5 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.79 Nm (7.0 Lb-In)
Screw Thread M3
Base Product Number 282841
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 282841-3-ND,A98343,2828413,10520301100,-282841-3-SI,-282841-3-LSI
Standard Package 200
Win Source Part Number 1332133-282841-3
Ultra Librarian 3D Model Ultra Librarian 282841-3 CAD Model

Description

The TE Connectivity AMP Connectors 1332133-282841-3 is a high-quality wire-to-board terminal block that is perfect for various applications.

  • Pitch: 0.200 inches
  • Wire Gauge: 12-30 AWG
  • Interlocking Feature: Yes
  • Wire Termination: screw-rising cage clamp
  • Voltage Rating: 300 V
  • Current Rating: 17.5 A
  • Contact Material: brass, tin-plated
  • Clamp and Screw Materials: nickel-plated
  • Screw Thread: M3
  • Torque: 0.79 Nm
  • ROHS3 Compliant: Yes
  • Mounting: horizontal with the board
