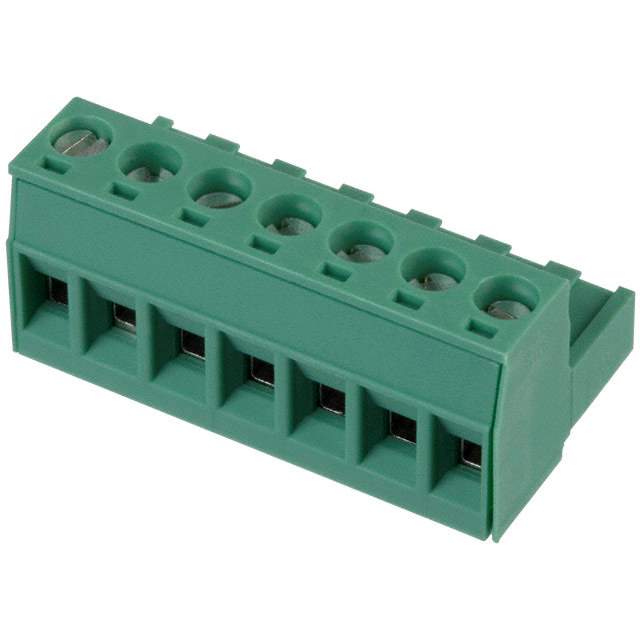

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Approvals CB, CSA, UL, VDE, cULus
Color Green
Connector Type Screw, Socket
Contact Material Tin
Contact Plating Tin
Current 15 A
Current Rating 12 A
Depth 18.2 mm
Flammability Rating UL94 V-0
Gender Female
Height 18.2 mm
Housing Color Green
Housing Material Polyamide
Insulation Material Nylon
Lead Free Lead Free
Length 35 mm
Material Polyamide
Max Current Rating 12 A
Max Supply Voltage 250 V
Mount Cable, Free Hanging, Plug-In
Number of Circuits 7
Number of Contacts 7
Number of Levels 1
Number of Poles 7
Number of Positions 7
Number of Positions Per Level 7
Number of Rows 1
Orientation Right Angle
Pitch 5 mm
Radiation Hardening No
RoHS Compliant
Stripping Length 7 mm
Termination Screw
Voltage 300 V
Voltage Rating 250 V
Weight 749.788188 g
Width 30 mm
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1129724-1754546
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1754546 CAD Model

Description

The Phoenix Contact 1129724-1754546 is a terminal block that has seven positions and one level.

  • Number of Positions: 7
  • Number of Levels: 1
  • Pitch: 5 mm
  • Color: Green
  • Connector Type: Screw and Socket
  • Number of Rows: 1
  • Termination: Screw
  • Contact Material: Tin
  • Voltage Rating: 250 V
  • Current Rating: 12 A
  • Gender: Female
  • Length: 35 mm
  • Housing Material: Polyamide
  • Approvals: CB, CSA, UL, VDE, and cULus
  • Number of Circuits: 7
  • Voltage: 300 V
  • Orientation: Right Angle
  • Contact Plating: Tin
  • Housing Color: Green
  • Insulation Material: Nylon
  • Height: 18.2 mm
  • Material: Polyamide
  • Number of Poles: 7
  • Weight: 749.788188 g
  • Current: 15 A
  • Width: 30 mm
  • Stripping Length: 7 mm
  • Popularity: Medium
  • Supply and Demand: Limited
  • RoHS Compliant: Yes
  • Suitable for: Use in various electronic devices
