Same model may have multiple batches, images only for reference.

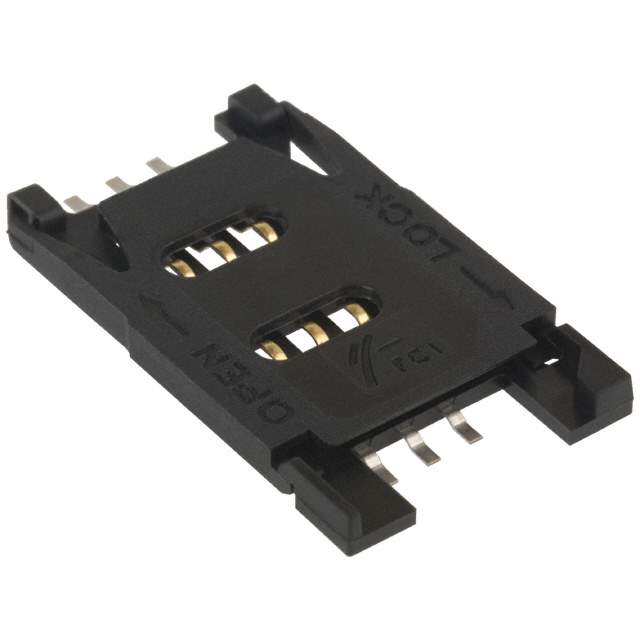

7111S2015X02LF Real Image
Same model may have multiple batches, images only for reference.

7111S2015X02LF

Part No 7111S2015X02LF
Manufacturer Amphenol
Catalog Memory Connectors - PC Card Sockets
Description CONN SIM CARD HINGED TYPE R/A / 6 Position Card Connector SIM Card Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Amphenol ICC (FCI)
Series S20
Package Tape & Reel
Card Type SIM Card
Number of Positions 6
Connector Type Connector and Ejector
Insertion, Removal Method Hinged Lid
Mounting Type Surface Mount, Right Angle
Height Above Board 0.098" (2.50mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number 7111S20
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340601-7111S2015X02LF
Ultra Librarian 3D Model Ultra Librarian 7111S2015X02LF CAD Model

Description

The S20 PC card socket is an ideal connector for use in electronic devices that require a SIM card from Amphenol ICC (FCI).

  • Insertion/Removal Method: Hinged Lid
  • Mounting: Surface Mount and Right Angle
  • Height Above Board: 0.098" (2.50mm)
  • Positions: 6
  • Contact Material: Gold
  • REACH: Affected
  • California Prop 65 Warning: Yes
