Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Microchip Technology
Series Military, MIL-PRF-19500/411
Package Tape & Reel (TR)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 9 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 150 ns
Current - Reverse Leakage @ Vr 1 µA @ 50 V
Mounting Type Through Hole
Package / Case B, Axial
Operating Temperature - Junction -65°C ~ 175°C
ECCN EAR99
HTSUS 8541.10.0080
Other Names 150-JAN1N5415/TR
Standard Package 1
Win Source Part Number 1182896-JAN1N5415/TR
Ultra Librarian 3D Model Ultra Librarian JAN1N5415/TR CAD Model

Description

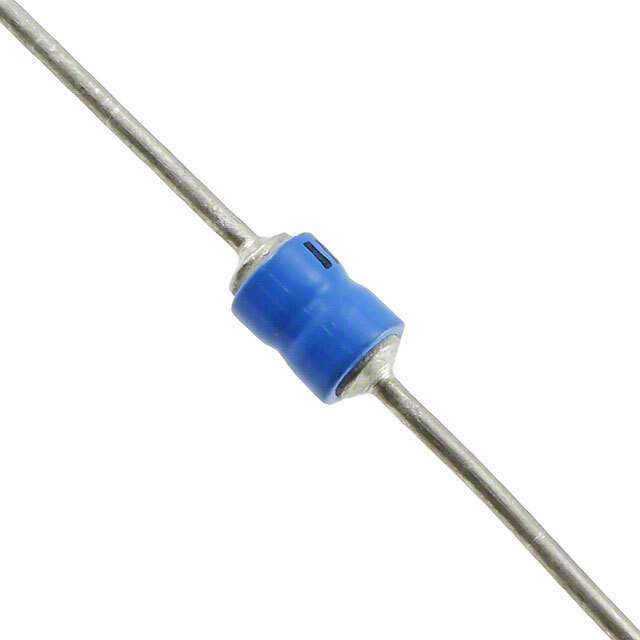

Product Overview: JAN1N5415/TR from Microchip Technology

The JAN1N5415/TR is a high-reliability, controlled avalanche rectifier diode designed and manufactured by Microchip Technology, a leader in the semiconductor industry. This device is specifically engineered to meet the stringent requirements of the aerospace and defense markets, where performance and durability under extreme conditions are paramount.

With its robust construction, the JAN1N5415/TR offers outstanding capabilities including a high reverse voltage of 400 volts and a forward current of 3.0 amperes. The device is characterized by its controlled avalanche characteristics, which enable it to handle surges and transient events effectively, ensuring reliable operation in circuits that are subject to high voltage spikes.

This diode is also notable for its low forward voltage drop, which contributes to higher efficiency in power conversion applications. Its fast switching speed makes it well-suited for high-frequency operations, while the low leakage current in the reverse direction ensures minimal power loss when the diode is in the off state.

The JAN1N5415/TR is packaged in a hermetically sealed case, which provides exceptional resistance to environmental factors such as moisture, dust, and thermal extremes. This encapsulation not only enhances the device's reliability but also extends its operational lifespan, making it an excellent choice for mission-critical applications.

The device is also compliant with the Joint Army/Navy (JAN) specifications, indicating that it has passed rigorous testing for military standards. This level of certification underscores its suitability for use in applications where failure is not an option, such as satellite systems, avionics, and military communications equipment.

In summary, the JAN1N5415/TR rectifier diode from Microchip Technology is a testament to the company's commitment to providing high-quality, reliable components for the most demanding environments. Its combination of high voltage capability, controlled avalanche features, and military-grade construction make it an indispensable component for designers looking to ensure the highest level of performance and dependability in their systems.
