Same model may have multiple batches, images only for reference.

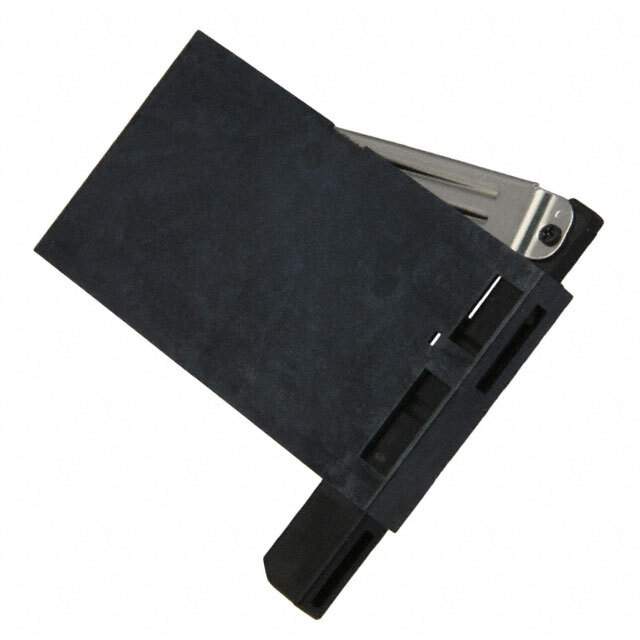

D7E50-7316-03 Real Image
Same model may have multiple batches, images only for reference.

D7E50-7316-03

Part No D7E50-7316-03
Manufacturer 3M
Catalog Memory Connectors - PC Card Sockets
Description CONN COMPACT FLASH CARD SNAP-IN / Connector Accessories Ejector Straight Box
Datasheet
D7E50-7316-03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 7E50
Packaging Bulk
Card Type CompactFlash - Type I
Connector Type Ejector
Insertion, Removal Method Push In, Push Out
Ejector Side Right
Mounting Snap-In
Height Above Board 0.280" (7.10mm)
Mounting Feature Normal, Standard - Top
Win Source Part Number 772371-D7E50-7316-03
Popularity Medium
Supply and Demand Status Limited
Family Name 7E50
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian D7E50-7316-03 CAD Model

Description

The 772371-D7E50-7316-03 is a snap-in ejector connector from the 7E50 series by 3M.

  • Card Type: compact flash - type I
  • Ejector Side: right
  • Mounting Feature: normal, standard - top
  • Height Above Board: 0.280 inches (7.10mm)
  • Supply and Demand: limited
  • Manufacturer: 3M
  • Estimated EOL Date: 2025
