Products specifications

Categories Connectors, Interconnects
Manufacturer Maxim Integrated
Series iButton
Packaging Bulk
Card Type iButton
Number of Positions 2
Connector Type Retainer, Clip
Insertion, Removal Method Push In, Pull Out
Mounting SMD
Height Above Board 0.470" (11.94mm)
Contact Finish Gold
Win Source Part Number 773356-DS9094FS+
Popularity Medium
Supply and Demand Status Limited
Family Name DS9094F
Introduction Date October 11, 1999
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian DS9094FS+ CAD Model

Description

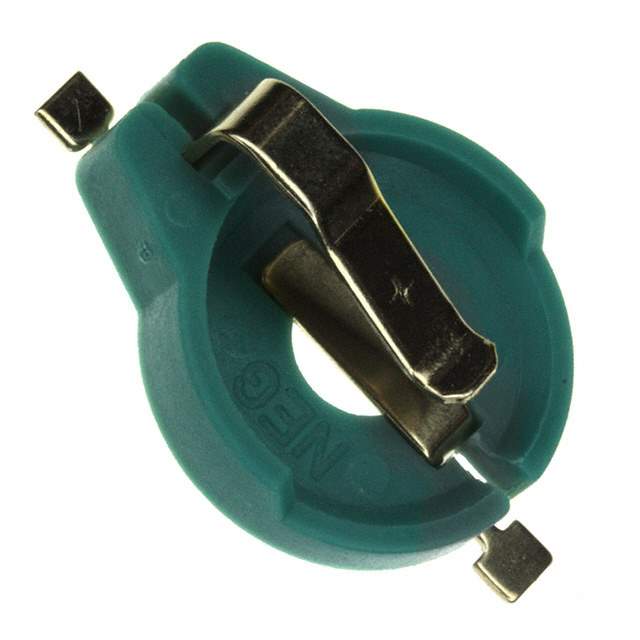

The DS9094FS+ from Maxim Integrated is a robust, cost-effective iButton® holder designed to provide a convenient surface mount solution for F5 MicroCan iButton devices. This holder allows for easy insertion and removal of iButtons, making it an ideal choice for applications where frequent data retrieval or updates are necessary.

Key Features:

  • Surface Mount Design: The DS9094FS+ is engineered to be mounted directly onto a printed circuit board, providing a secure and reliable connection for iButton devices.
  • Durability: Constructed with high-quality materials, this holder is designed to withstand harsh environments and repetitive use.
  • Compatibility: Specifically tailored for F5 MicroCan iButtons, it ensures a perfect fit and optimal electrical contact for data transfer and authentication tasks.
  • Easy to Use: The simple snap-in and snap-out mechanism facilitates quick insertion and removal of iButton devices without the need for additional tools.

Applications:

The DS9094FS+ is versatile and can be used across a wide range of applications, including:

  • Access control systems
  • Asset tracking and management
  • Work-in-progress tracking
  • Maintenance and service records
  • Electronic cash transactions

Technical Specifications:

Parameter Value Mounting Type Surface Mount Material High-temperature thermoplastic Compatibility F5 MicroCan iButtons

The DS9094FS+ is a testament to Maxim Integrated's commitment to providing innovative and reliable solutions for data storage and transfer. Its durable construction and ease of use make it an essential component for any system utilizing iButton technology.
