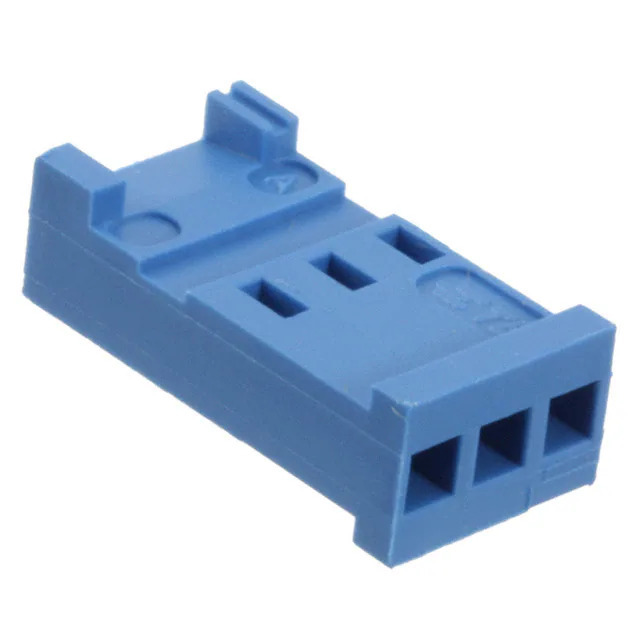

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series HE13/HE14
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Temperature Range - Operating -55°C ~ 125°C
Note Contacts Not Included
Base Product Number 281838
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365442-281838-3
Ultra Librarian 3D Model Ultra Librarian 281838-3 CAD Model

Description

The TE Connectivity AMP Connectors 281838 is a rectangular connector housing from the HE13/HE14 series.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: HE13/HE14
  • Connector Type: Receptacle
  • Number of Positions: 3
  • Number of Rows: 1
  • Color: Black
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Note: Contacts Not Included
  • Status: Active
  • Vendor REACH Status: Undefined
