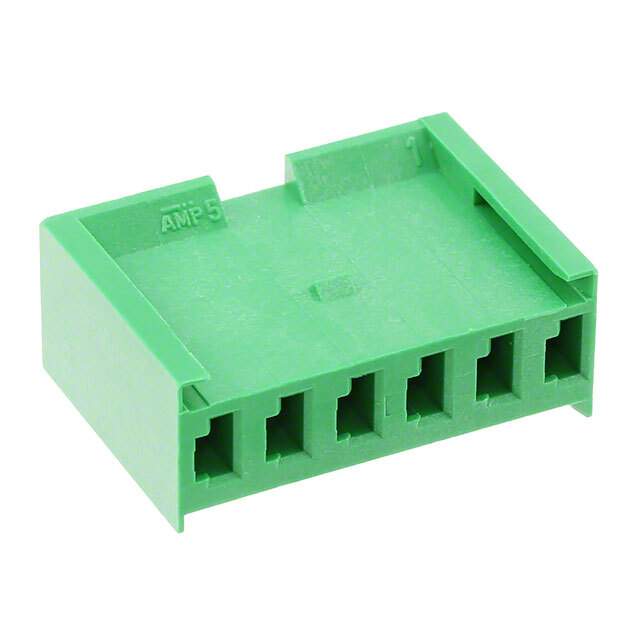

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Box
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 6
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Green
Note Contacts Not Included
Base Product Number 2805
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number A113281,280592-ND,-280592-SI
Standard Package 1,000
Win Source Part Number 1332063-280592
Ultra Librarian 3D Model Ultra Librarian 280592 CAD Model

Description

The TE Connectivity AMP Connectors 280592 is a Rectangular Connector Housing with a Number of Positions of 6 and Pitch of 0.156" (3.96mm). It has a Color of Green and Connector Type of Receptacle with Contact Type of Female Socket. The package includes contacts not included and has a mounting of Free Hanging (In-Line). It is suitable for Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings.
