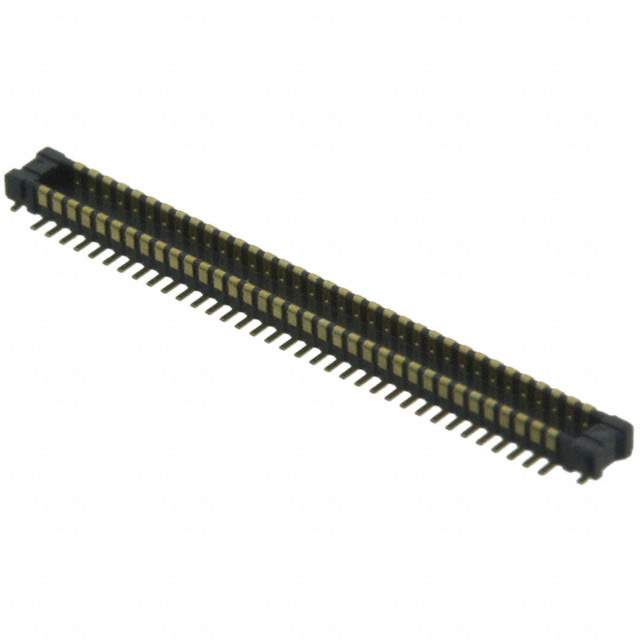

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 70
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020949-AXE670124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE670124 CAD Model

Description

The Panasonic Electric Works 1020949-AXE670124 is a high-quality connector that is perfect for use in a variety of applications.

  • Manufacturer: Panasonic Electric Works
  • Part Number: 1020949-AXE670124
  • Positions: 70
  • Pitch: 0.016 inches
  • Feature: solder retention
  • Contact Finish: gold
  • Mated Stacking Heights: 0.8mm
  • Height Above Board: 0.026 inches
  • Applications: automotive, industrial, and consumer electronics industries
  • Packaging: reel of 5,000 pieces
