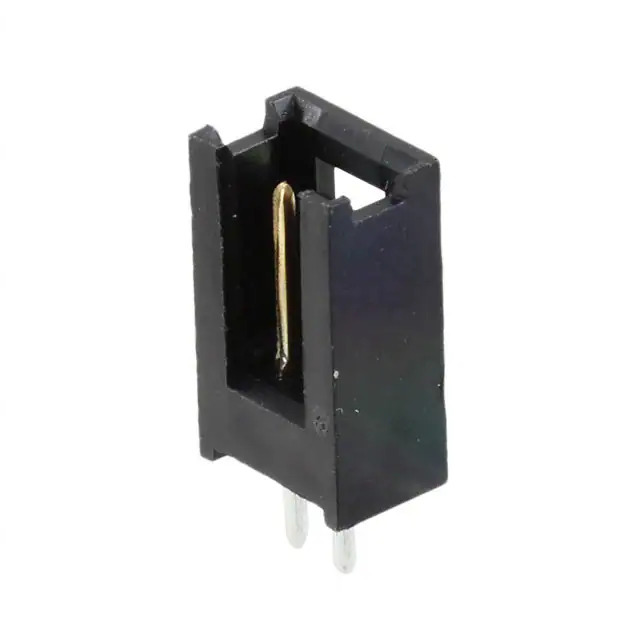

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.260" (6.60mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.563" (14.30mm)
Insulation Height 0.496" (12.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features -
Temperature Range - Operating -40°C ~ 80°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 40V
Mated Stacking Heights -
Contact Finish Thickness - Post 98.4µin (2.50µm)
Applications -
Base Product Number 280370
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362582-280370-2
Ultra Librarian 3D Model Ultra Librarian 280370-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod II is a header connector designed for board-to-board or cable connections.

  • Current Rating: 3A
  • Voltage Rating: 40V
  • Contact Type: Male Pin
  • Pitch: 0.100" (2.54mm)
  • Positions: 2
  • Shrouded: 3 Walls
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Mating Side Contact Finish: Gold, 15.0µin (0.38µm)
  • Post Side Contact Finish: Tin
  • Contact Material: Brass
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Color: Black
  • Contact Length: 0.563" (14.30mm)
  • Insulation Height: 0.496" (12.60mm)
