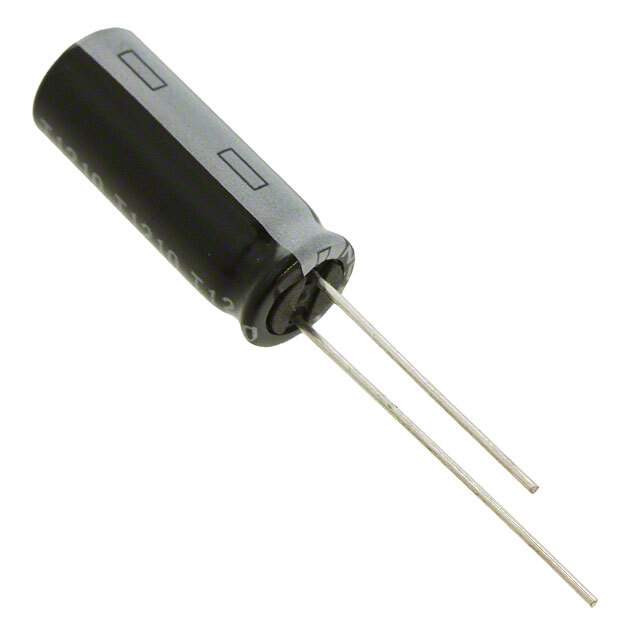

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 825 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Impedance 29 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names 1189-2267,35ZLH390MEFC8X20
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307289-35ZLH390MEFC8X20
Ultra Librarian 3D Model Ultra Librarian 35ZLH390MEFC8X20 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitors are designed for general purpose applications.

  • Capacitance: 390 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 29 mOhms
  • ESR (Equivalent Series Resistance): Not specified
  • Lifetime: 8000 hours @ a temperature of 105°C
  • Polarized: Yes
  • Mounting Style: Through-hole
  • Package/Case: Radial, can
  • Height: 22.00mm
  • Ripple Current @ Low Frequency: 825 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.5 A @ 100 kHz
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
