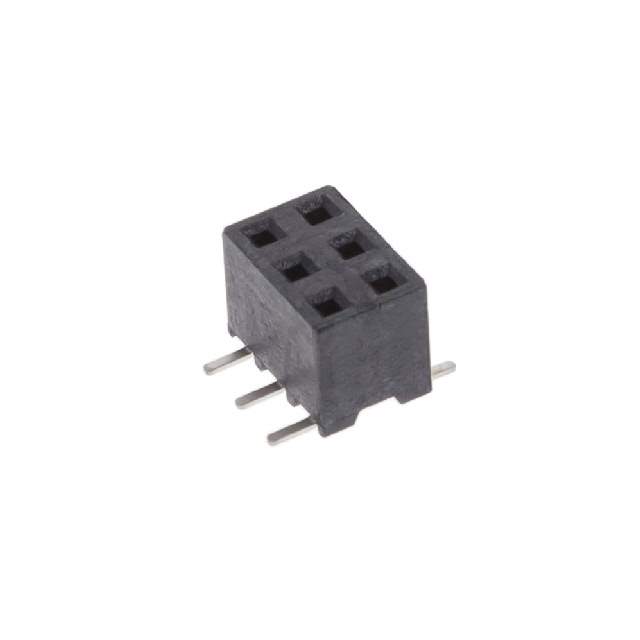

2314844-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle, Bottom or Top Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.94µin (0.100µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 2A
Voltage Rating 125VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 12.0µin (0.30µm)
Base Product Number 2314844
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 17-2314844-6,-1076-2314844-6-SI
Standard Package 90
Win Source Part Number 1332151-2314844-6
Ultra Librarian 3D Model Ultra Librarian 2314844-6 CAD Model

Description

The TE Connectivity AMP Connectors 1332151-2314844-6 is a surface-mount connector with a board-to-board style and a pitch of 0.079" (2.00mm).

  • Positions: 6
  • Connector Style: Rectangular Connectors, Headers, Female Sockets
  • Packaging: Tube
  • Feature: Pick and Place
  • Voltage Rating: 125VAC
  • Current Rating: 2A
  • Insulation Color: Black
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Supply Demand: In Balance
  • Popularity: Medium
