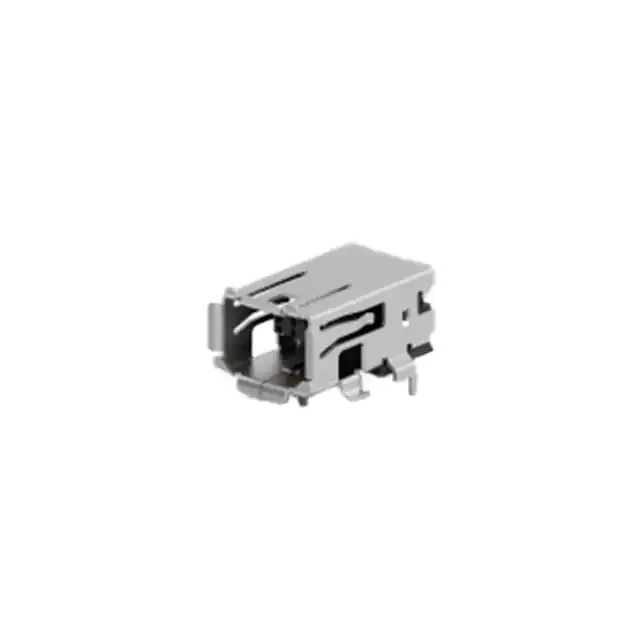

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Style Header
Connector Type Industrial Mini, Type II
Number of Positions 8
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Base Product Number 2294415
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362655-2294415-2
Ultra Librarian 3D Model Ultra Librarian 2294415-2 CAD Model

Description

The pluggable connector assembly from TE Connectivity AMP Connectors is a versatile and reliable connector for various applications.

  • Position Configuration: 8-position
  • Mounting Type: Surface Mount, Right Angle
  • Contact Finish: Gold
  • Series: Industrial Mini, Type II
  • Termination Style: Solder
  • Product Status: Active
  • Packaging: Tray
