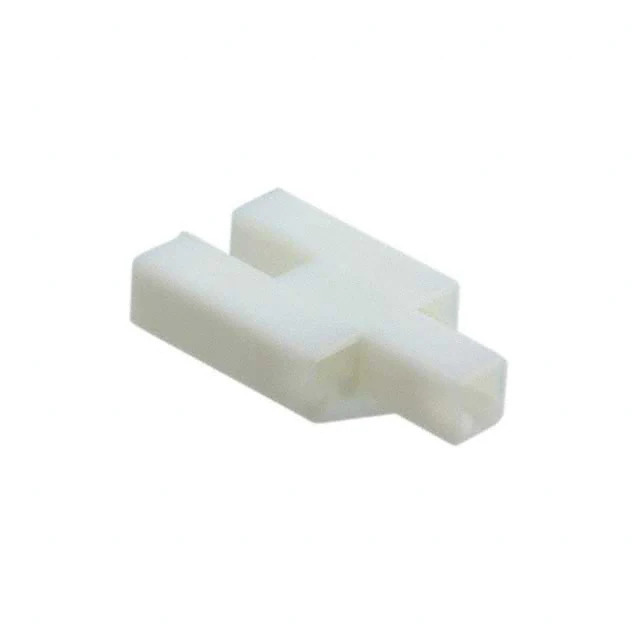

2232327-2 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Housings, Boots
Mfr TE Connectivity AMP Connectors
Series -
Package Box
Product Status Active
Style Cluster Block Housing
Terminal Type Cluster Pin
Gender Female, Receptacle
Terminal Size -
Number of Positions 3
Stacking Direction Side to Side
For Use With/Related Products 2.30mm Dia Receptacle
Mounting Type Free Hanging (In-Line)
Color Natural
Material Polyamide (PA6), Nylon 6, Glass Filled
Note Contacts Not Included
Base Product Number 2232327
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1364029-2232327-2
Ultra Librarian 3D Model Ultra Librarian 2232327-2 CAD Model

Description

The TE Connectivity AMP Connectors Cluster Block Housing is a terminal housing used for connectors and interconnects.

  • Product: Terminal Housing
  • Color: Natural
  • Material: Polyamide (PA6), Nylon 6, Glass Filled
  • Mounting Type: Free Hanging (In-Line)
  • Stacking Direction: Side to Side
  • Positions: 3
  • Gender: Female
  • Mates With: 2.30mm Receptacles
  • Contacts Included: No
  • Product Status: Active
  • ECCN: EAR99
