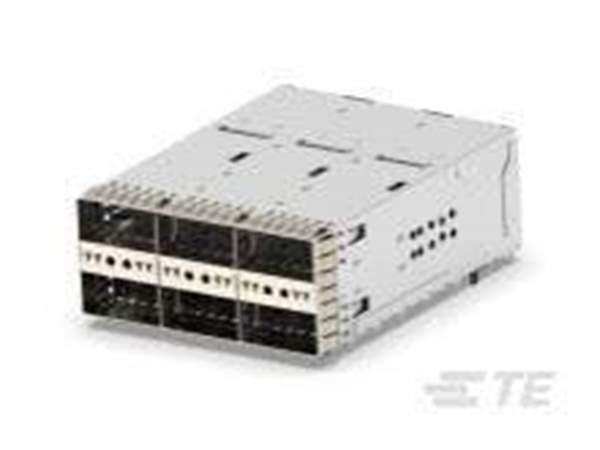

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1206383-2227671-2
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Pluggable Connectors -Pluggable Connector Assemblies
Package Tray
Product Status Active
Connector Style Receptacle with Cage, Ganged (2x3)
Connector Type ZQSFP+
Number of Positions 228 (38 x 6)
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded, Light Pipe
Ultra Librarian 3D Model Ultra Librarian 2227671-2 CAD Model

Description

228 (38 x 6) Position ZQSFP+ Receptacle with Cage, Ganged (2x3) Connector Press-Fit Through Hole, Right Angle
