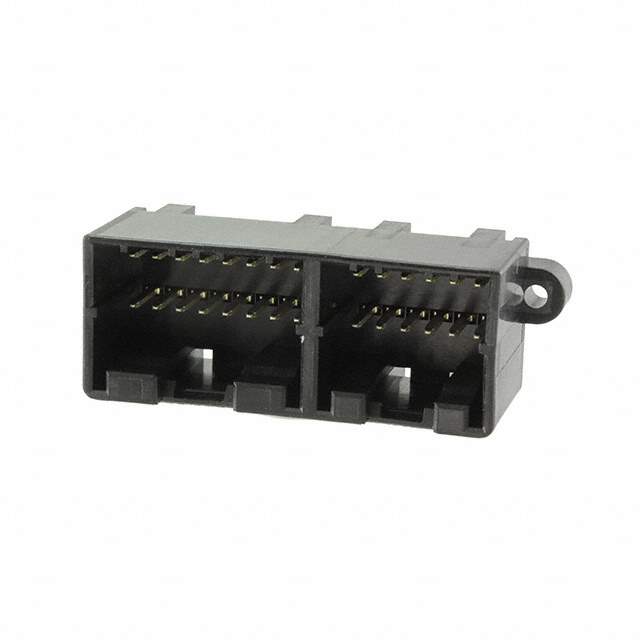

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Multi-Lock
Package Bulk
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 28
Number of Rows 2
Row Spacing - Mating 0.205" (5.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.146" (3.70mm)
Insulation Height 0.756" (19.20mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Applications Automotive, General Purpose
Base Product Number 174979
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 174979-2-ND,A123702,-174979-2-LSI,-174979-2-SI,-174979-2-CSI
Standard Package 504
Win Source Part Number 1034974-174979-2
Ultra Librarian 3D Model Ultra Librarian 174979-2 CAD Model

Description

The TE Connectivity AMP Connectors Multi-Lock is an electronic component that is designed for use in connectors and interconnects.

  • Connection Style: Board to Cable/Wire
  • Pitch Mating: 0.098" (2.50mm)
  • Shrouding: Shrouded-4 Wall
  • Mounting Type: Through-Hole
  • Temperature Range: -30°C to 105°C
  • Applications: Automotive and General Purpose
