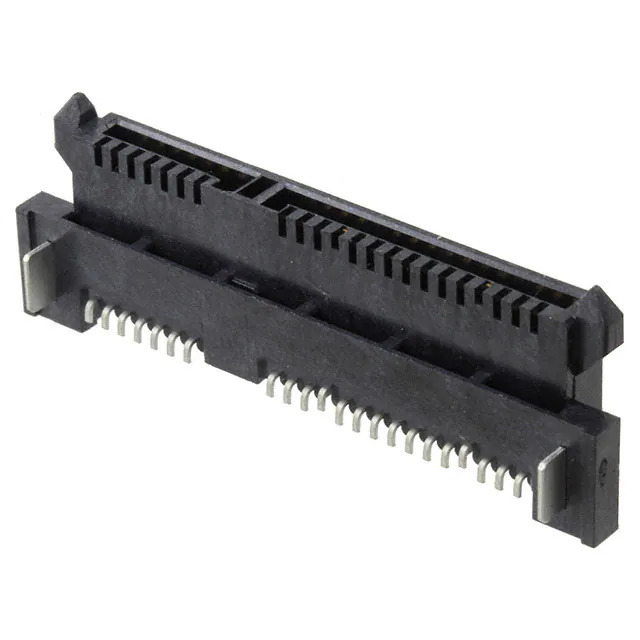

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Style Receptacle
Connector Type SATA
Number of Positions 22
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 2023246
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364401-2023246-2
Ultra Librarian 3D Model Ultra Librarian 2023246-2 CAD Model

Description

The 2023246-2 is a pluggable connector assembly from TE Connectivity AMP Connectors.

  • Connector Type: SATA
  • Connector Style: Receptacle
  • Positions: 22
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Feature: Board Guide
  • Mounting: Surface Mountable, Right-Angle
  • Status: Active
  • Package: Tray
  • Vendor REACH Status: Undefined
  • ECCN: EAR99
