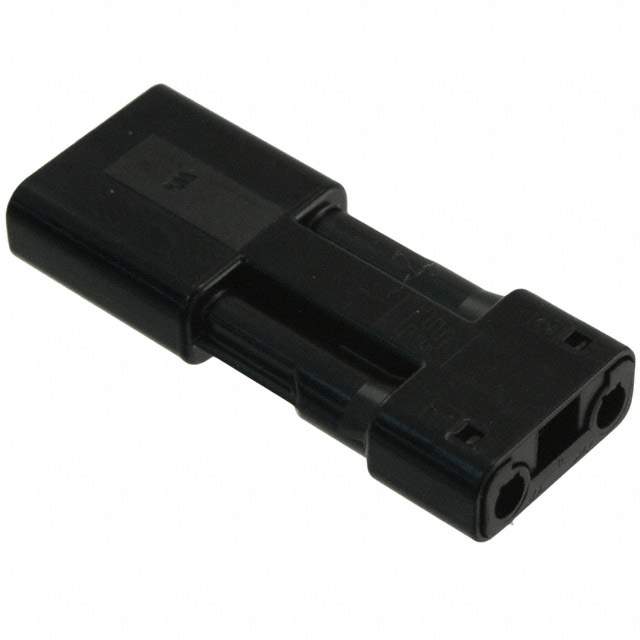

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Style Cable/Wire to Cable/Wire
Connector Type Receptacle Housing for Tab Contact
Number of Positions 2
Mounting Style Free Hanging (In-Line)
Termination Crimp
Pitch 0.138" (3.50mm)
Fastening Type Latch Lock
Housing Color Black
Housing Material Polycarbonate (PC)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 400V
Current Rating (Amps) 3.5A (22-24AWG); 5A (18-20 AWG)
Ingress Protection IP67 - Dust Tight, Waterproof
Mating Cycles 30
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810820-2106136-2
Ultra Librarian 3D Model Ultra Librarian 2106136-2 CAD Model

Description

The TE Connectivity AMP Connectors 810820-2106136-2 is a receptacle housing component from TE Connectivity AMP Connectors.

  • Component Type: Receptacle Housing for Tab Contact
  • Fastening Type: Latch Lock
  • Pitch: 0.138 inches
  • For Use With/Related Products: Cable/Wire to Cable/Wire Connections
  • Win Source Part Number: 810820-2106136-2
  • Manufacturer's Pack Quantity: 500
  • MSL Level: 1 (unlimited)
  • Voltage Rating: 400V
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Housing Material: Polycarbonate (PC)
  • Housing Color: Black
  • Mating Cycles: 30
  • Operating Temperature: -40°C ~ 105°C
  • Current Rating (amps): 3.5A (22-24AWG); 5A (18-20 AWG)
