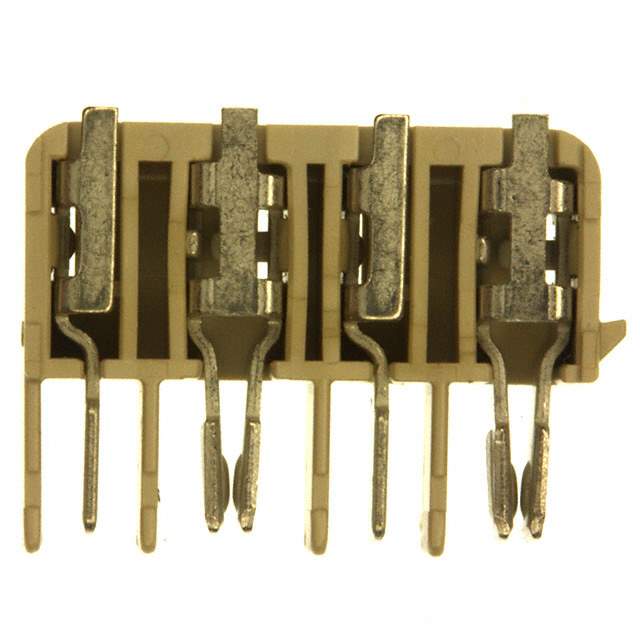

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Style Board to Board
Connector Type Blade and Receptacle, Hermaphroditic
Number of Positions 4
Mounting Style Board Edge, Surface Mount, Right Angle
Termination Solder
Pitch 0.157" (4.00mm)
Fastening Type Locking Ramp
Housing Color Natural
Contact Material Copper Alloy
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 125V
Current Rating (Amps) 6A
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808403-2058703-2
Ultra Librarian 3D Model Ultra Librarian 2058703-2 CAD Model

Description

TE Connectivity AMP Connectors presents a 4-position board-to-board blade and receptacle connector with a right-angle surface-mount mounting style.

  • Mounting Style: Right Angle Surface Mount
  • Material: Copper Alloy
  • Finish: Tin
  • Fastening Type: Locking Ramp
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Housing Color: Natural
  • Temperature Range: -40°C to 105°C
  • Packaging: Reel
  • MSL Level: 1 (unlimited)
  • Manufacturer Pack Quantity: 1,000
