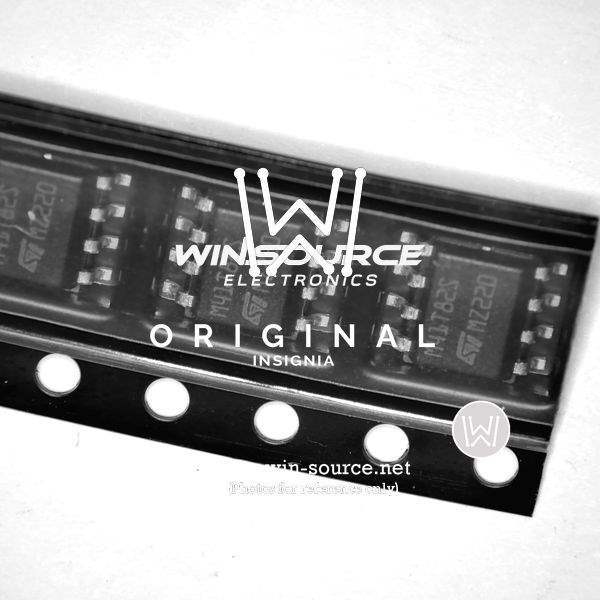

The M41T82SM6F from STMicroelectronics is a highly integrated, low-power serial real-time clock (RTC) with a built-in 32.768 kHz oscillator (external crystal controlled) and an embedded crystal. This precision timekeeping device is specifically designed to provide a comprehensive set of features for a wide range of time-related applications.
The device offers a robust set of features including a calendar, alarm, and programmable square-wave output, making it ideal for applications that require accurate timekeeping, such as data loggers, servers, telematics, and other industrial or consumer products. The M41T82SM6F is equipped with an I2C interface for communication with a microcontroller or processor, allowing for easy integration into a system design.
Key features of the M41T82SM6F include:
- Accurate Timekeeping: It maintains seconds, minutes, hours, day, date, month, and year information with leap year compensation valid up to 2099.
- Alarm Function: The device supports an alarm function that can be set to a specific time, allowing for scheduled events or wake-up signals.
- Battery Backup: An integrated battery-backup switch-over circuit ensures functionality during power failures, preserving timekeeping and SRAM data.
- Low Power Consumption: Designed for battery-powered applications with low power consumption in both active and battery-backup modes.
- Programmable Square-Wave Output: This output can be used for various applications, including timing reference or as a system wake-up signal.
- Serial Interface: The I2C serial interface facilitates easy and quick communication with the host controller.
With its small surface-mount package and wide operating temperature range, the M41T82SM6F is versatile for a multitude of environments and compact applications. Its robust design, coupled with STMicroelectronics' reputation for reliability, makes it a go-to choice for engineers and designers looking for a dependable real-time clock solution.
