Same model may have multiple batches, images only for reference.

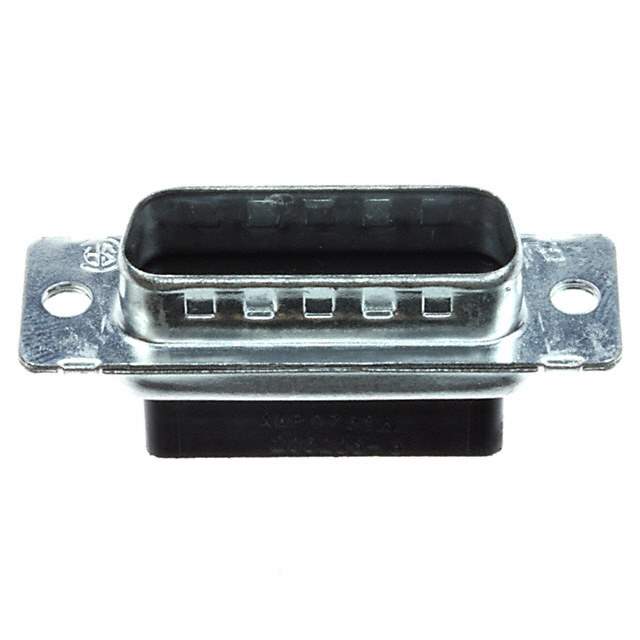

205206-3 Real Image
Same model may have multiple batches, images only for reference.

205206-3

Part No 205206-3
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB HOUSING PLUG 15POS  /  Plug for Male Contacts Housing D-Sub Connector 15 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin Plated
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 205206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 2052063,-27-01519-00-CSI-ND,-205206-3-CSI,-27-01519-00-CSI,-27-01519-00-SI,-27-01519-00-SI-ND,A1039,-205206-3-SI
Standard Package 400
Win Source Part Number 1130926-205206-3
Ultra Librarian 3D Model Ultra Librarian 205206-3 CAD Model

Description

The 205206-3 from TE Connectivity AMP Connectors is a 15-position D-sub connector housing from the AMPLIMITE HDP-20 series.

  • Grounding: Grounding Indents
  • Designed for: Male Contacts
  • Material: Steel with a tin-plated finish
  • Dielectric Material: Polyamide (PA)
  • Connector Layout: 2-row
  • Shell Size: 2 (DA, A)

The connector is made of steel with a tin-plated finish and has a polyamide (PA) dielectric material. It has a 2-row connector layout and a shell size of 2 (DA, A). The TE Connectivity AMP Connectors 205206-3 is available in a bulk package and has a standard package of 400. Please note that contacts are not included.
