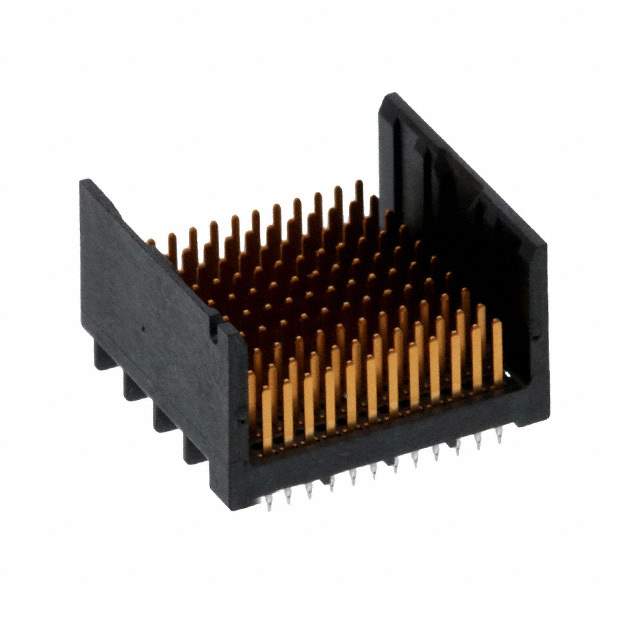

2007820-1 Real Image
Same model may have multiple batches, images only for reference.

2007820-1

Part No 2007820-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER IMPACT 120POS PCB / 120 Connector Header, Male Pins Through Hole Black Impact
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series IMPACT
Package Bulk
Connector Type Header, Male Pins
Connector Style Impact
Number of Positions 120
Number of Positions Loaded All
Pitch 0.075" (1.91mm)
Number of Rows 12
Number of Columns 10
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Current Rating (Amps) 0.75A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 30VAC/DC
Base Product Number 2007820
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2007820-1-ND,A128365,2266-2007820-1
Standard Package 26
Win Source Part Number 1031958-2007820-1
Ultra Librarian 3D Model Ultra Librarian 2007820-1 CAD Model

Description

The TE Connectivity AMP Connectors 2007820 is an impact header connector that is designed for use in backplane applications.

  • Positions: 120
  • Pitch: 0.075 inches
  • Mounting: Through-Hole
  • Type: Male Pin Header
  • Finish: Gold
  • Contact Finish Thickness: 30.0μin
  • Voltage Rating: 30VAC/DC
  • Current Rating: 0.75A
  • Popularity: High
  • Package: Bulk
  • Pieces per Package: 26
