Same model may have multiple batches, images only for reference.

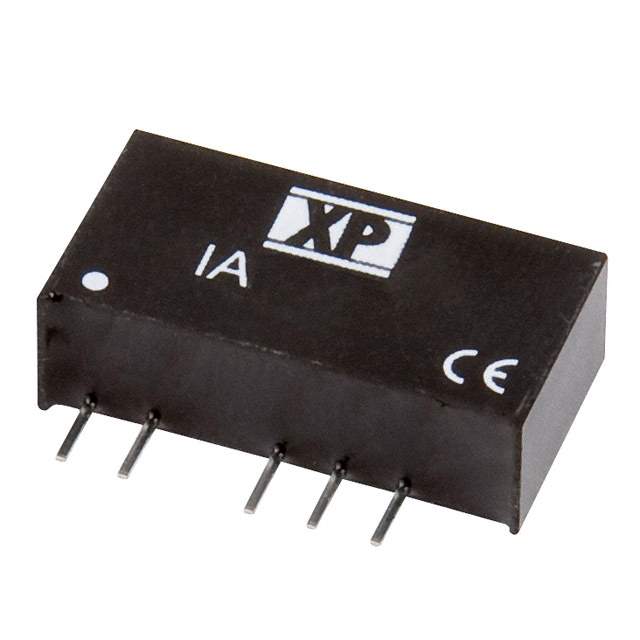

IA0512S Real Image
Same model may have multiple batches, images only for reference.

IA0512S

Part No IA0512S
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA 4.5V - 5.5V Input
Datasheet
IA0512S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series IA (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 5-SIP Module
Dimension 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm)
Standard Number 62368-1
Base Product Number IA0512
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-1349-5
Standard Package 20
Win Source Part Number 1216742-IA0512S
Ultra Librarian 3D Model Ultra Librarian IA0512S CAD Model

Description

The IA0512S is a 1W Isolated Module DC-DC Converter manufactured by XP Power XP Power.

  • Application: ITE (Commercial)
  • Number of Outputs: Two
  • Voltage Isolation: 1 kV
  • Package: 5-SIP through-hole
  • Packaging: Tube
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Current Output: 42mA
  • Efficiency: 78%
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm)
  • Standard Compliance: 62368-1
