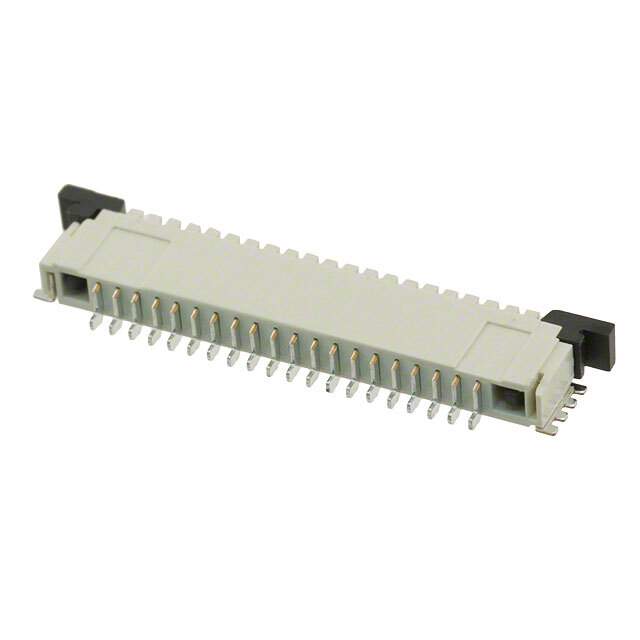

Same model may have multiple batches, images only for reference.

2-84953-0

Name: 2-84953-0
Brand: TE Connectivity
SKU: 1333333
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2-84953-0
Manufacturer	TE Connectivity
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC TOP 20POS 1.00MM R/A / 20 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	20
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.101" (2.56mm)
Locking Feature	Slide Lock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	200V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness	78.7µin (2.00µm)
Housing Color	Natural
Actuator Color	Black
Base Product Number	84953
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	-2-84953-0-SI,2849530,A100260CT,A100260DKR,A100260TR
Standard Package	1,200
Win Source Part Number	1333333-2-84953-0
Ultra Librarian 3D Model	Ultra Librarian 2-84953-0 CAD Model

Description

The 1333333-2-84953-0 from TE Connectivity AMP Connectors is a FFC, FPC (Flat Flexible) Connector Assembly designed for surface mount, right-angle mounting.

Pitch: 0.039" (1.00mm)
Height Above Board: 0.101" (2.56mm)
Locking Feature: slide lock
Cable End Type: straight
Voltage Rating: 200V
Current Rating: 1A
Standard Package: 1,200
Housing Material: liquid crystal polymer (LCP), glass filled
FFC, FCB Thickness: 0.30mm
Contact Finish: tin
