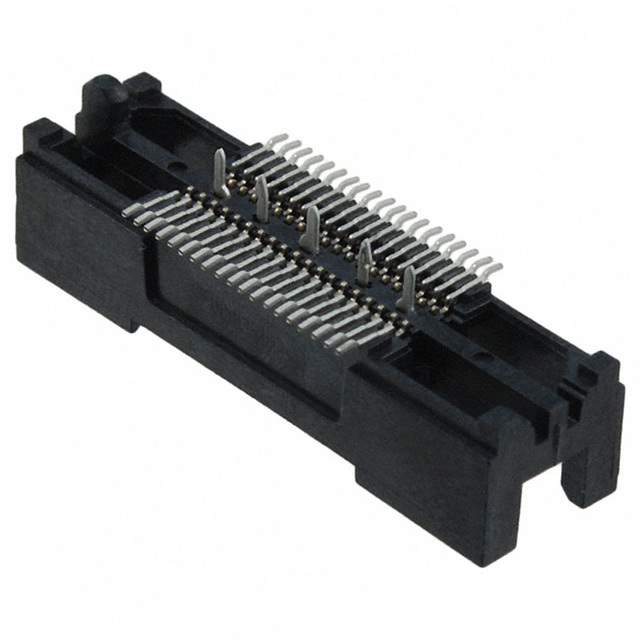

2-767004-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 38
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Mated Stacking Heights 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board 0.236" (6.00mm)
Win Source Part Number 1003611-2-767004-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2-767004-2 CAD Model

Description

The TE Connectivity AMP Connectors 1003611-2-767004-2 is a 38-position, 2-row, receptacle connector with center strip contacts.

  • Number of Positions: 38
  • Number of Rows: 2
  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Pitch: 0.025" (0.64mm)
  • Height Above Board: 0.236" (6.00mm)
  • Contact Finish Thickness: 30μin (0.76μm) Gold
  • Mounting Type: Surface Mount (SMD)
  • Features: Board Guide, Ground Bus (Plane)
  • RoHS Compliant: Yes
